Name: INSTRUMENTED SPEED CORRECTOR-SETTER KZSP
Brand: УКБП
Price: 2700.00 USD
Availability: InStock

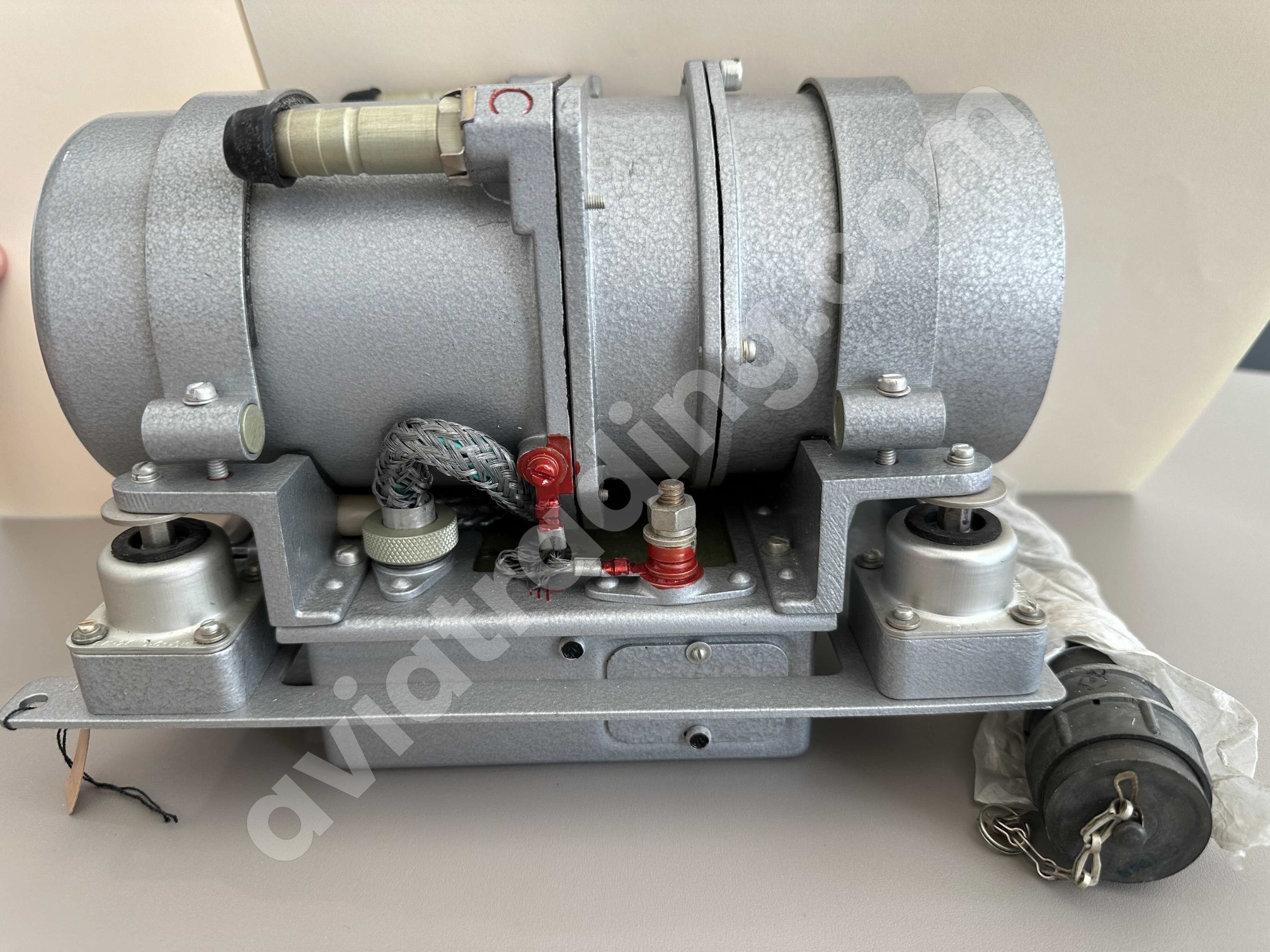

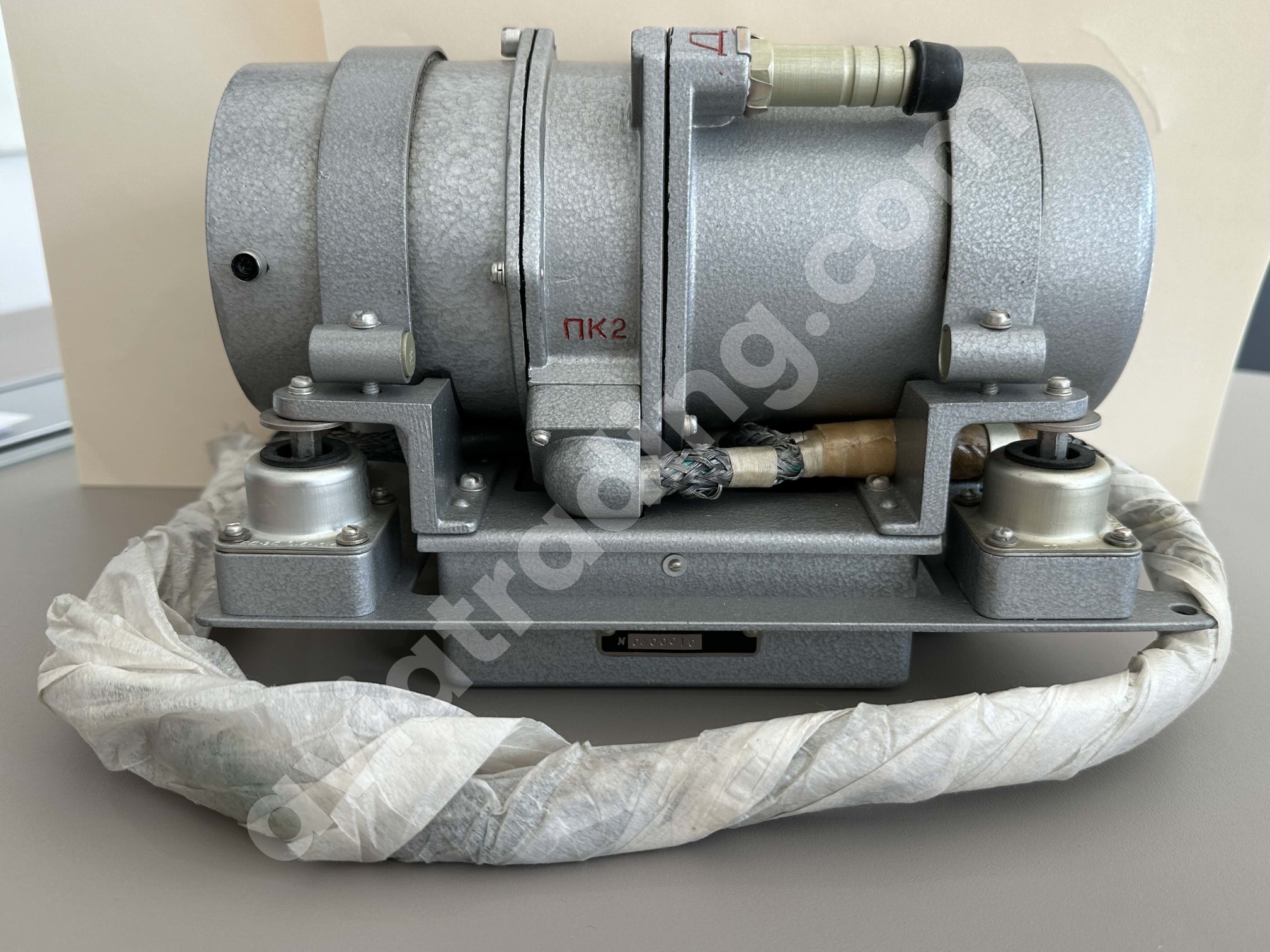

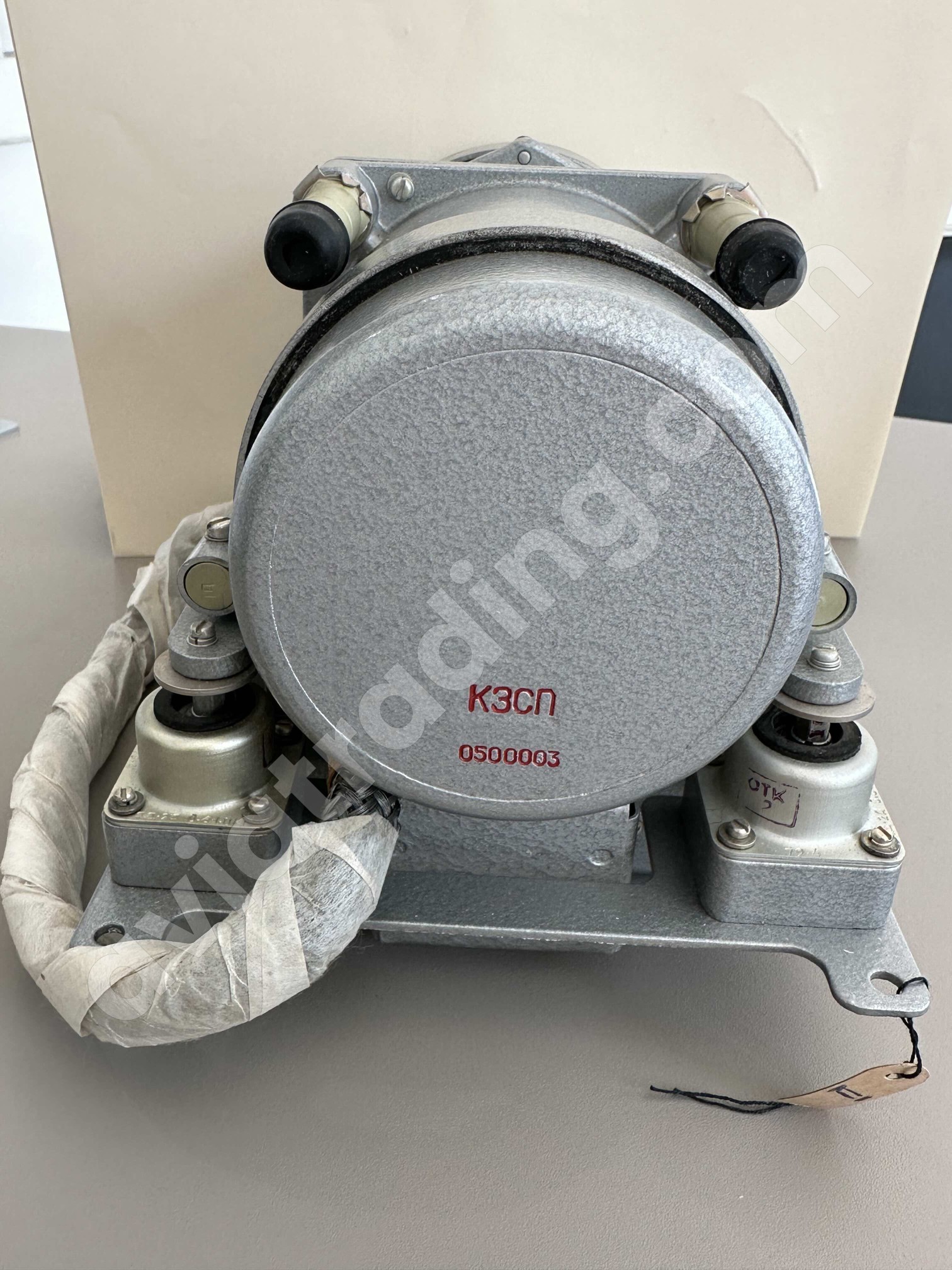

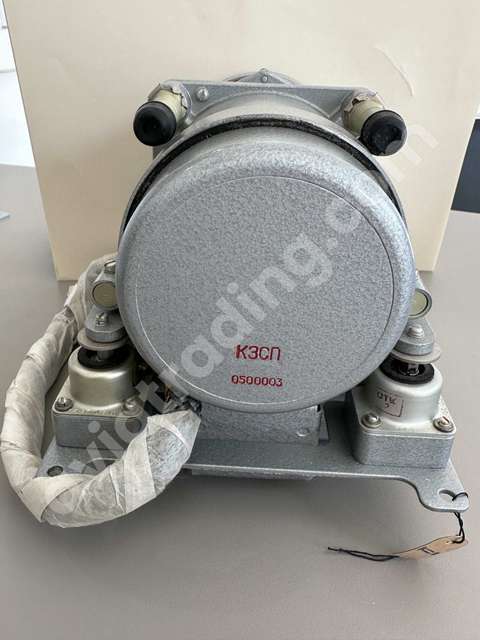

INSTRUMENTED SPEED CORRECTOR-SETTER KZSP

Published Jan 16, 2024| 157 views

ATA classification:31 Indicating / Recording—31-10 Display Units

Standard classification:On-board Equipment—Flight instrumentation systems (avionics)

Code

6Х2.300.017

Condition

NE - New Equipment

Type

Airplane

Brand

УКБП

No certificates declaredThis part may be sold for non-airworthy use only (display, training, salvage, parts harvest). Verify documentation with the seller before purchase.

Return period

Return shipping paid by

Receiver

Quantity

1 available

Seller information:

AVIASPARES

76 items in stock

Item cost (1) $ 2,700

Shipping (per item)Upon Request

Total$ 2,700

This item can’t be purchased until shipping is confirmed. Submit a shipping request and the seller will review delivery options and costs.

Add to cart

Specifications & Details

Seller information:

AVIASPARES

76 items in stock

To produce an electrical signal proportional to the deviation of the speed from the set one

Affects the PICK channel KPA for testing: AP-SVS-2 Speed measurement range, km/h: 150...1300 Operating temperature range, °C: +60...-60 Supply voltage from DC mains 27+2.4-3.0 from AC mains, V: 36±1.8 frequency, Hz: 400±20 Power consumed by the corrector for alternating current, VA, no more than: 4 for direct current, W, no more than: 20 Maximum output signal of each output, V, within: 20±7 The zero signal of each output at a temperature of +25±10°С, mV, does not exceed: 400 Insulation resistance of the corrector's electrical circuits relative to its body and between electrically not connected circuits at a temperature of +25±10°C and a relative humidity of 65±15%, MOhm, not less than: 20 The tightness of the static corrector system when creating a pressure equal to 400 mm Hg abs., the change in pressure in 1 minute does not exceed, mm Hg abs: 2 The dynamic corrector system is sealed at pressure, mm Hg. iz.: 890 Corrector weight, kg, no more: 3.1
