Name: 2RMDT24KPN10G5V1
Brand: RadioMir
Price: 55.00 USD
Availability: InStock

Published Mar 8, 2024| 119 views

Standard classification:Electrotechnical equipment—Relays, connectors

Condition

FN - Factory New

Type

Airplane

Brand

RadioMir

No certificates declaredThis part may be sold for non-airworthy use only (display, training, salvage, parts harvest). Verify documentation with the seller before purchase.

Return period

Return shipping paid by

Receiver

Quantity

9 available

Seller information:

AVIASPARES

76 items in stock

Item cost (1) $ 55

Shipping (per item)Upon Request

Total$ 55

This item can’t be purchased until shipping is confirmed. Submit a shipping request and the seller will review delivery options and costs.

Add to cart

Specifications & Details

Seller information:

AVIASPARES

76 items in stock

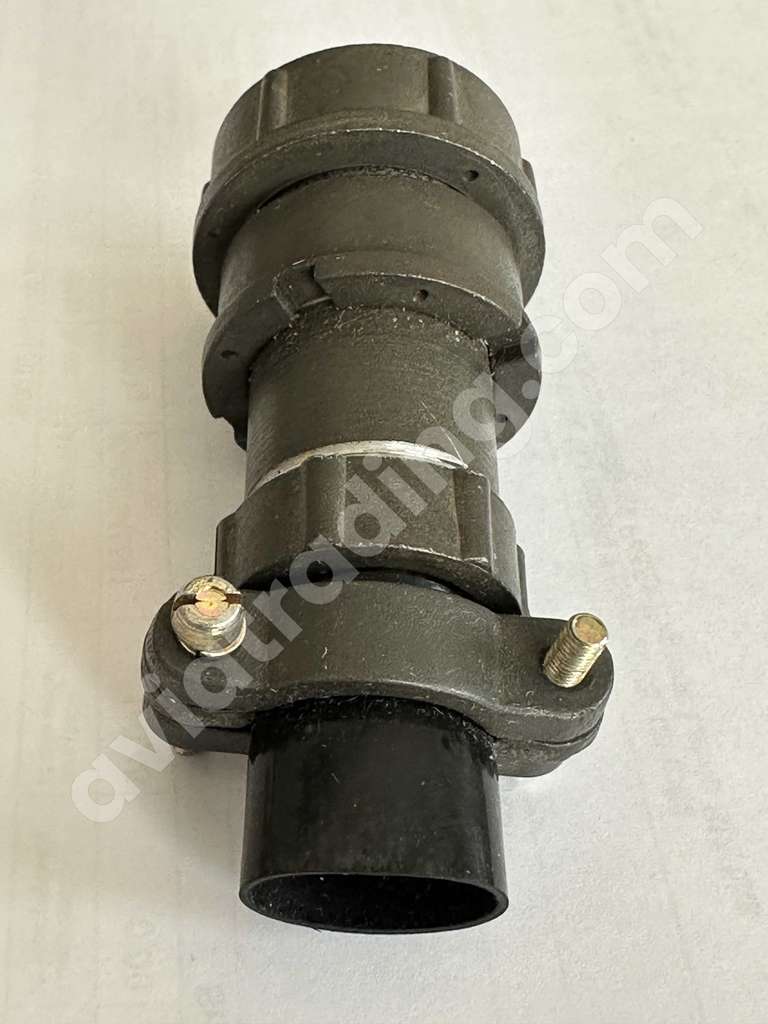

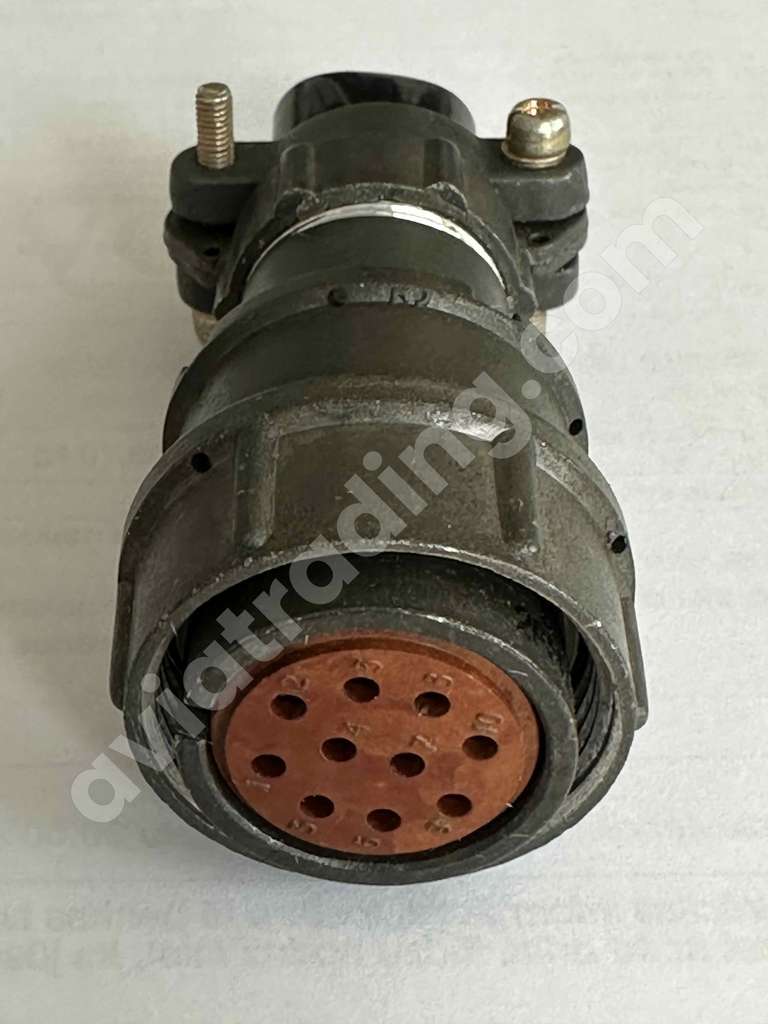

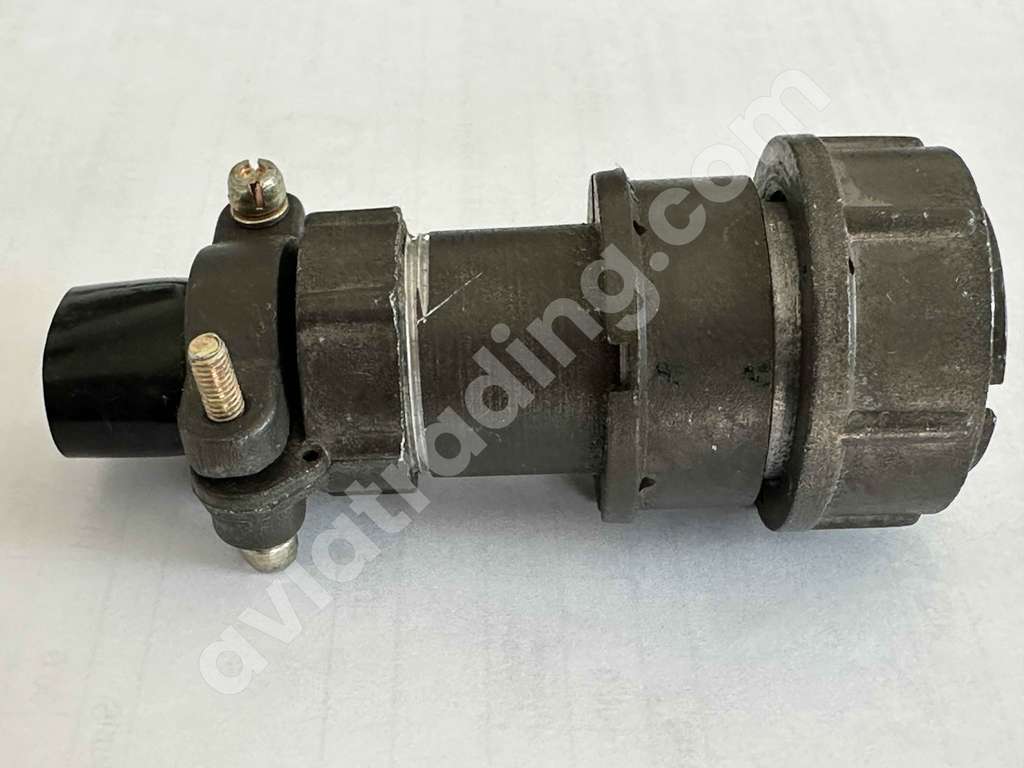

2РМДТ24КПН10Г5В1В cable socket with silver contacts, straight nipple, and nut for unshielded cable. Connector 2РМДТ24КПН10Г5В1В is a cylindrical low-frequency tropical-resistant connector with threaded fixing of the articulated position. Designed for connecting and disconnecting electrical circuits of direct and alternating currents with a frequency of up to 3 MHz at a voltage of 560 or 700 V depending on the type rating. Used in units and blocks of radio-electronic equipment for special and general purposes.

Technical parameters of connectors 2РМДТ: Total number of contacts: 4, 7, 8, 10, 19, 20, 22, 24, 32, 45, 50 Maximum current per single contact, A: - contact diameter, 1.0 mm - contact diameter, 1.5 mm - contact diameter, 2.0 mm - contact diameter, 3.0 mm 5....8 7....15 18 32 Contact resistance, no more than, MOhm: - contact diameter, 1.0 mm - contact diameter, 1.5 mm - contact diameter, 2.0 mm - contact diameter, 3.0 mm 5.0 2.5 1.6 0.8 Maximum operating voltage, V: 700 Maximum operating frequency, MHz: 3 Insulation resistance under normal climatic conditions, not less than, MOhm: 5000 Sinusoidal vibration, frequency range, Hz: 1....5000 Sinusoidal vibration, acceleration, m/s2 (g): 490 (50) Mechanical shock, single action with acceleration, m/s2 (g): 5000 (500) Mechanical shock, multiple action with acceleration, m/s2 (g): 1000 (100) Minimum operating time, hours: 1000 Number of mate-demate cycles: 500 Shelf life, years: 15 Atmospheric reduced pressure, Pa (mm Hg): 133.32·10-12 (10-12) Increased relative air humidity at +40°C: 98% Operating ambient temperature, °C: from -60 to +100
