Published Mar 12, 2025| 205 views

Standard classification:Electrotechnical equipment—Relays, connectors

Code

ТЭ0.450.004ТУ

Condition

NE - New Equipment

Type

Airplane

Brand

TKE

No certificates declaredThis part may be sold for non-airworthy use only (display, training, salvage, parts harvest). Verify documentation with the seller before purchase.

Return period

Return shipping paid by

Receiver

Quantity

4 available

Seller information:

AVIASPARES

76 items in stock

Item cost (1) $ 73.51

Shipping (per item)Upon Request

Total$ 73.51

This item can’t be purchased until shipping is confirmed. Submit a shipping request and the seller will review delivery options and costs.

Add to cart

Specifications & Details

Seller information:

AVIASPARES

76 items in stock

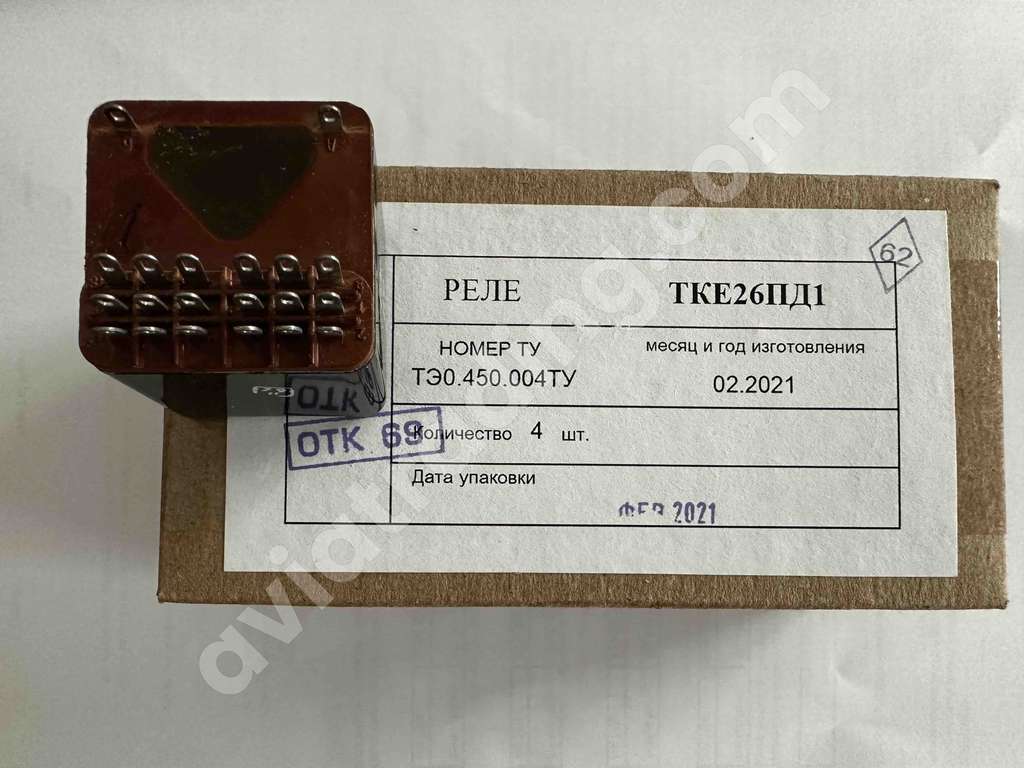

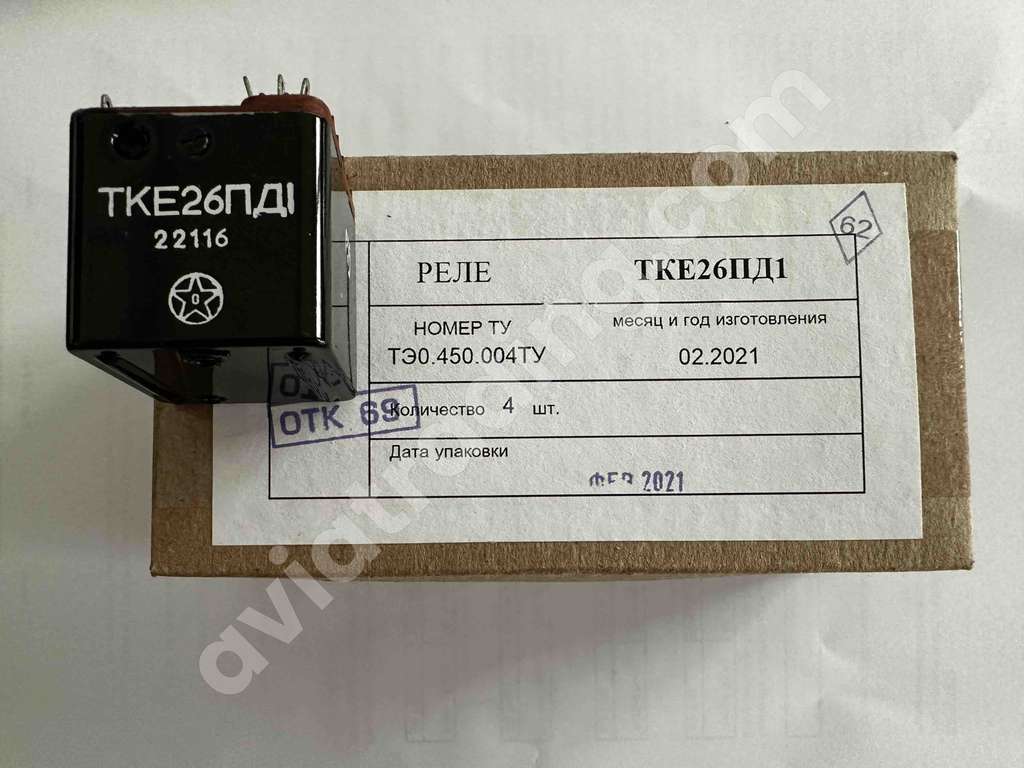

TKE26PD1 Electromagnetic Relay – High-Reliability Switching for DC and AC Circuits The TKE26PD1 is a non-hermetic electromagnetic switching relay designed for DC networks with a nominal voltage of 27V. It features six independent changeover contacts, each rated for 2A, ensuring precise and reliable circuit switching. Key Features and Performance Specifications: ✔ Control Voltage: 27V DC ✔ Switched DC Voltage Range: 17.5V – 30V ✔ Switched AC Voltage Range: 20V – 200V (400Hz) ✔ Current Capacity per Contact: Up to 2A ✔ Operation Mode: Continuous ✔ Enclosure Type: Shielded, non-hermetic ✔ Applications: Ideal for aviation, onboard electrical systems, and ground-based radio equipment Designed for Precision and Durability The TKE26PD1 relay is built for stable and high-performance switching in aviation and industrial electrical systems. Its robust design and six independent switching contacts make it a reliable choice for critical control applications requiring precision and durability. Whether used in aircraft systems or ground-based radio equipment, this relay ensures consistent performance in demanding environments.

TKE26PD1 Relay – Technical Specifications and Performance Overview The TKE26PD1 electromagnetic relay is engineered for precise switching of DC and AC circuits, making it a reliable choice for aviation, industrial, and electronic control systems. Below are its key specifications: Technical Specifications: ✔ Control Circuit Voltage Range: 24V – 30V DC ✔ Control Circuit Current Range: 0.05A – 2A ✔ Switched DC Voltage Range: 17.5V – 30V ✔ Switched AC Voltage Range (360-440Hz): 20V – 200V ✔ Coil Power Consumption (at nominal voltage): ≤ 0.15A ✔ Relay Activation Voltage: ≤ 14V ✔ Relay Release Voltage: ≤ 7V ✔ Design: Open-frame, non-hermetic ✔ Operating Temperature Range: -60°C to +100°C ✔ Dimensions (mm): 37 × 35 × 38 ✔ Weight: 80g Built for High-Precision and Reliable Operation The TKE26PD1 relay is designed for stable performance in extreme environments, making it ideal for onboard aircraft systems, ground-based electronic control units, and radio equipment. With its broad voltage range and durable construction, this relay ensures consistent and efficient circuit switching, even in high-temperature and high-frequency applications.
