Name: Cable socket 2RMDT30KUN24G5V1V
Brand: RadioMir
Price: 420.00 AED
Availability: InStock

Published Sep 11, 2024| 255 views

Standard classification:Electrotechnical equipment—Relays, connectors

Code

2RMDT30KUN24G5V1V

Condition

FN - Factory New

Type

Airplane

Brand

RadioMir

No certificates declaredThis part may be sold for non-airworthy use only (display, training, salvage, parts harvest). Verify documentation with the seller before purchase.

Return period

Return shipping paid by

Receiver

Quantity

5 available

Seller information:

AVIASPARES

76 items in stock

Item cost (1) $ 114.35

Shipping (per item)Upon Request

Total$ 114.35

This item can’t be purchased until shipping is confirmed. Submit a shipping request and the seller will review delivery options and costs.

Add to cart

Specifications & Details

Seller information:

AVIASPARES

76 items in stock

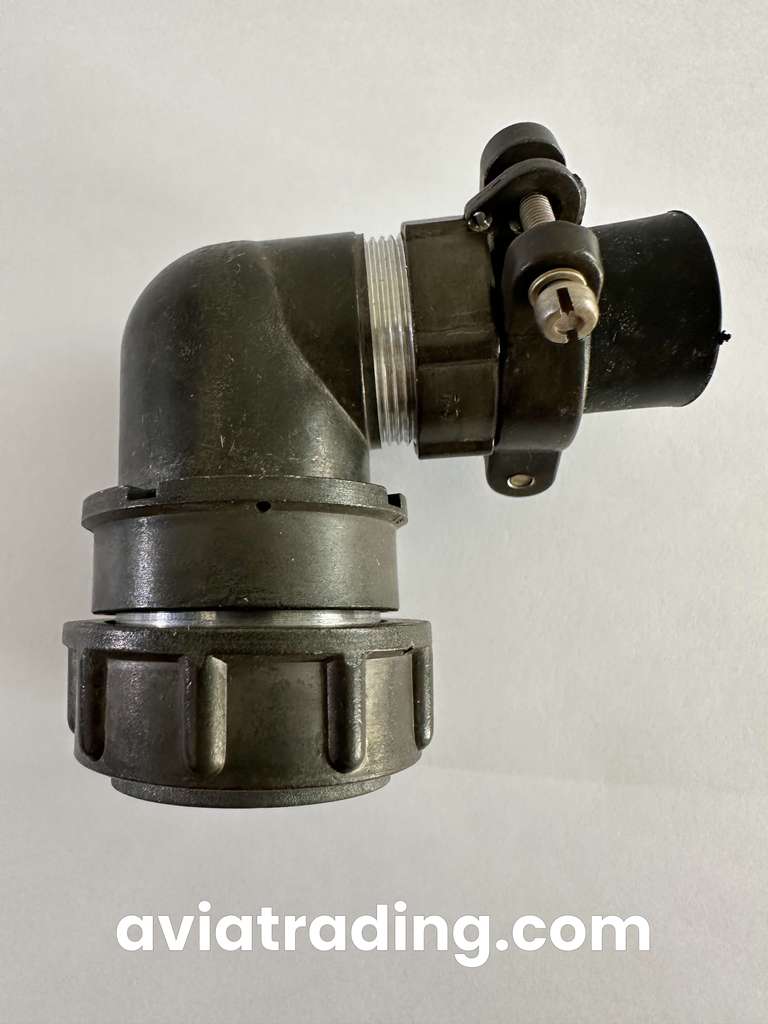

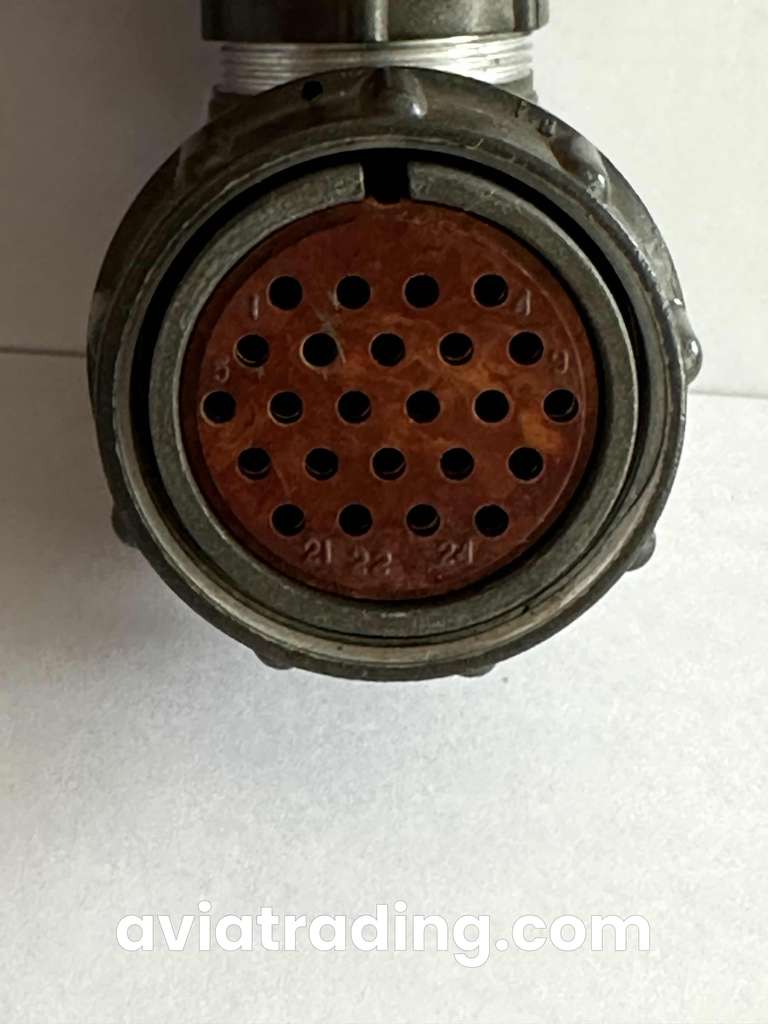

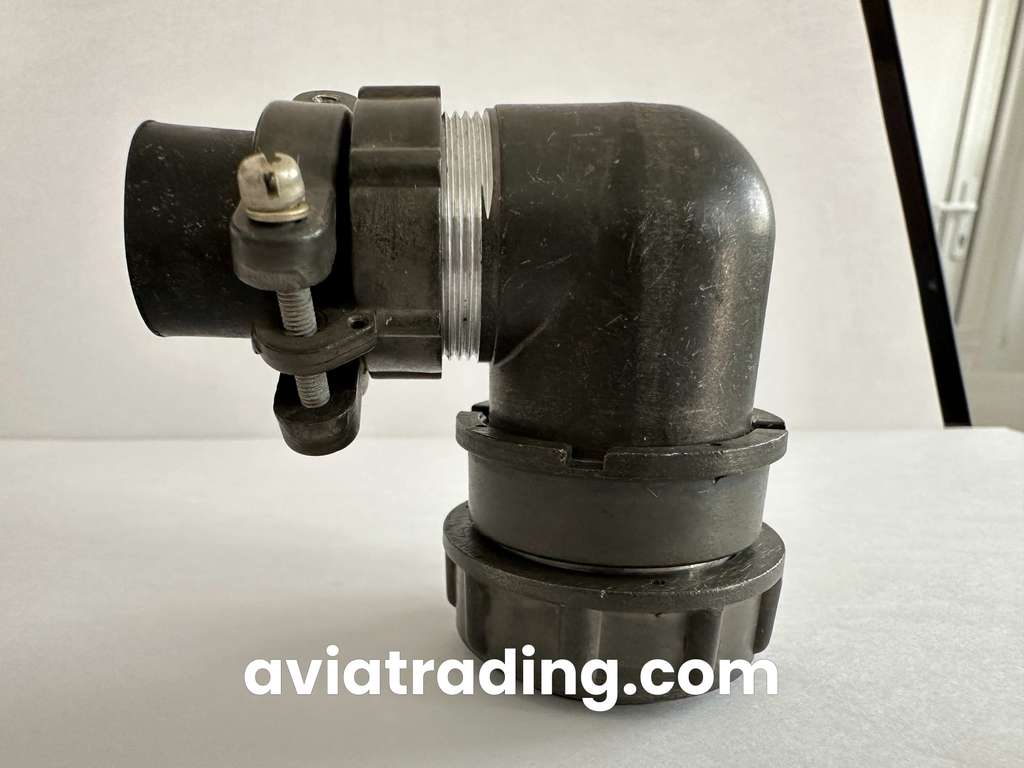

2RMDT30KUN24G5V1V is a cable socket with silver contacts, an angled tube, and a nut for unshielded cables. The 2RMDT30KUN24G5V1V connector is a cylindrical, low-frequency, tropical-resistant connector with threaded coupling of the mated position. It is designed for connecting and disconnecting direct and alternating current circuits with frequencies up to 3 MHz at a voltage of 560 or 700 V, depending on the type rating. It is used in units and blocks of special-purpose and general-purpose radio-electronic equipment. The 2RMDT connectors are manufactured in eight structural designs with 13 type ratings for each design, totaling 720 type constructions. The connectors consist of two parts: a socket and a plug. The sockets and plugs can be either equipment-mounted or cable-mounted. The equipment-mounted part of the connectors is manufactured without tubes or with straight tubes, and the cable part is produced without tubes, or with straight or angled tubes. The mating of the connectors is threaded, and the housing polarization is achieved through a single keyway. The contact coating can be either gold or silver. They are intended for installation with shielded or unshielded cables (wires), with the type of end nut on the tube changing accordingly. The wires are connected to the contact tails by soldering. The number of soldering operations on the contacts should not exceed 3. They are manufactured for internal installation in all-climate versions.

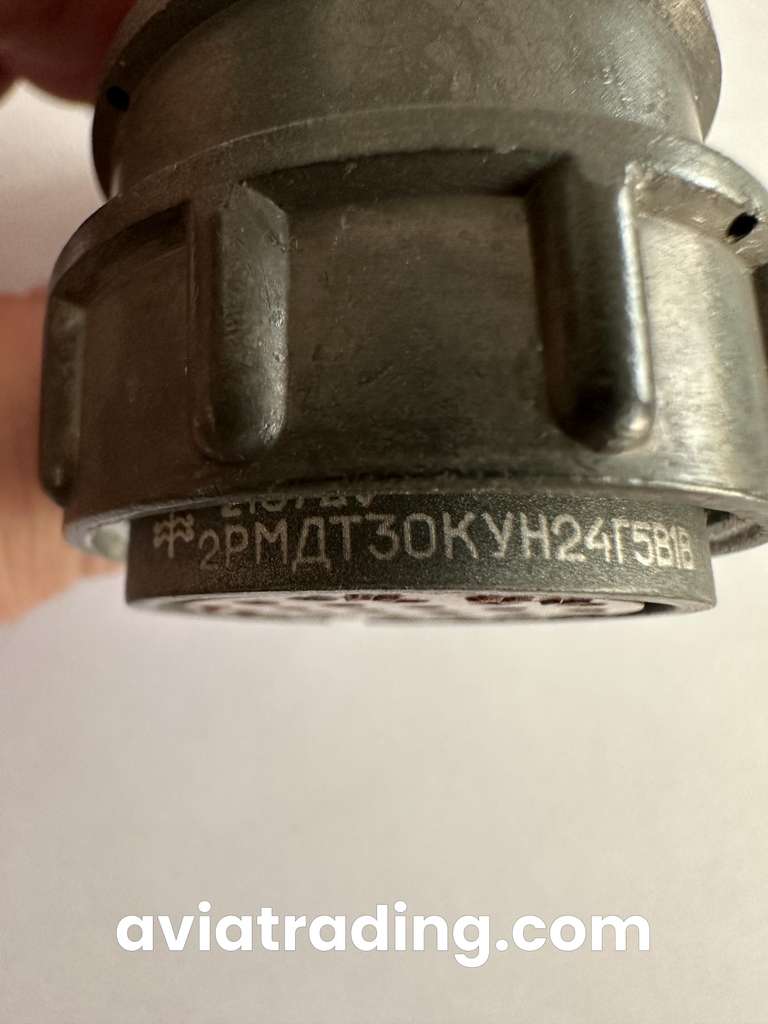

Decoding of the designation: 2RMDT30KUN24G5V1V • 2RMDT – connector type; • 30 – nominal shell size; • K – shell type: K – cable-mounted, B – block-mounted (equipment-mounted); • U – tube type: P – straight, U – angled; • N – tube nut type: E – for shielded cable, N – for unshielded cable; • 24 – number of contacts; • G – connector part: Sh – plug; G – socket; • 5 – contact combination designation; • V – contact coating: A – gold, V – silver; • 1 – heat resistance: 1 – 100°C; 2 – 200°C; • V – all-climate version; • L – left socket (only for pass-through plugs).
