Name: MU-615A Angular motion potentiometry detector, heatproof
Brand: Avikon
Price: 950.00 USD
Availability: InStock

MU-615A Angular motion potentiometry detector, heatproof

Published Jun 21, 2024| 199 views

ATA classification:31 Indicating / Recording—31-10 Display Units

Standard classification:On-board Equipment—Flight instrumentation systems (avionics)

Code

XII.44.020 ПС

Condition

FN - Factory New

Brand

Avikon

No certificates declaredThis part may be sold for non-airworthy use only (display, training, salvage, parts harvest). Verify documentation with the seller before purchase.

Return period

Return shipping paid by

Receiver

Quantity

10 available

Seller information:

AVIASPARES

76 items in stock

Item cost (1) $ 950

Shipping (per item)Upon Request

Total$ 950

This item can’t be purchased until shipping is confirmed. Submit a shipping request and the seller will review delivery options and costs.

Add to cart

Specifications & Details

Seller information:

AVIASPARES

76 items in stock

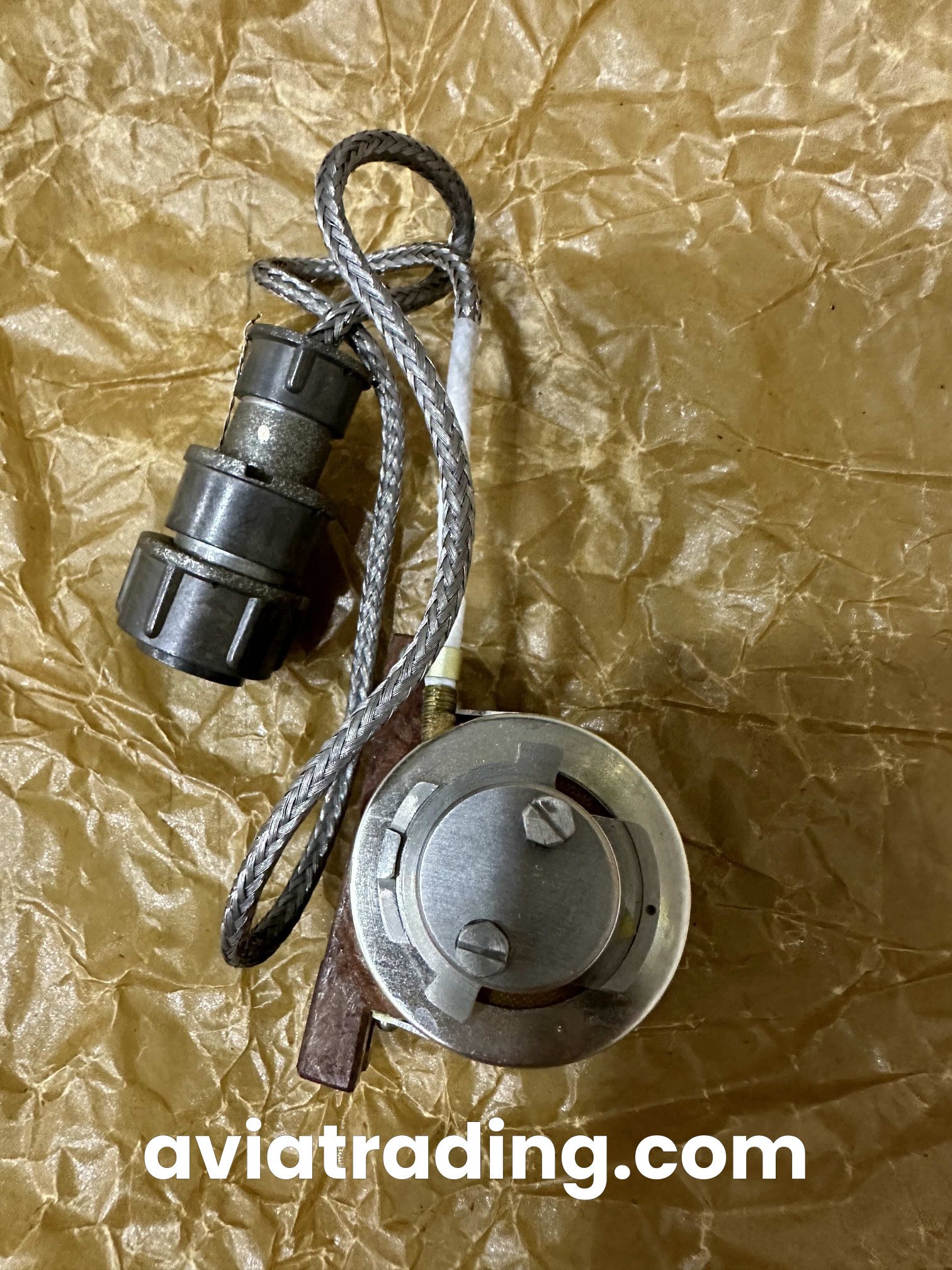

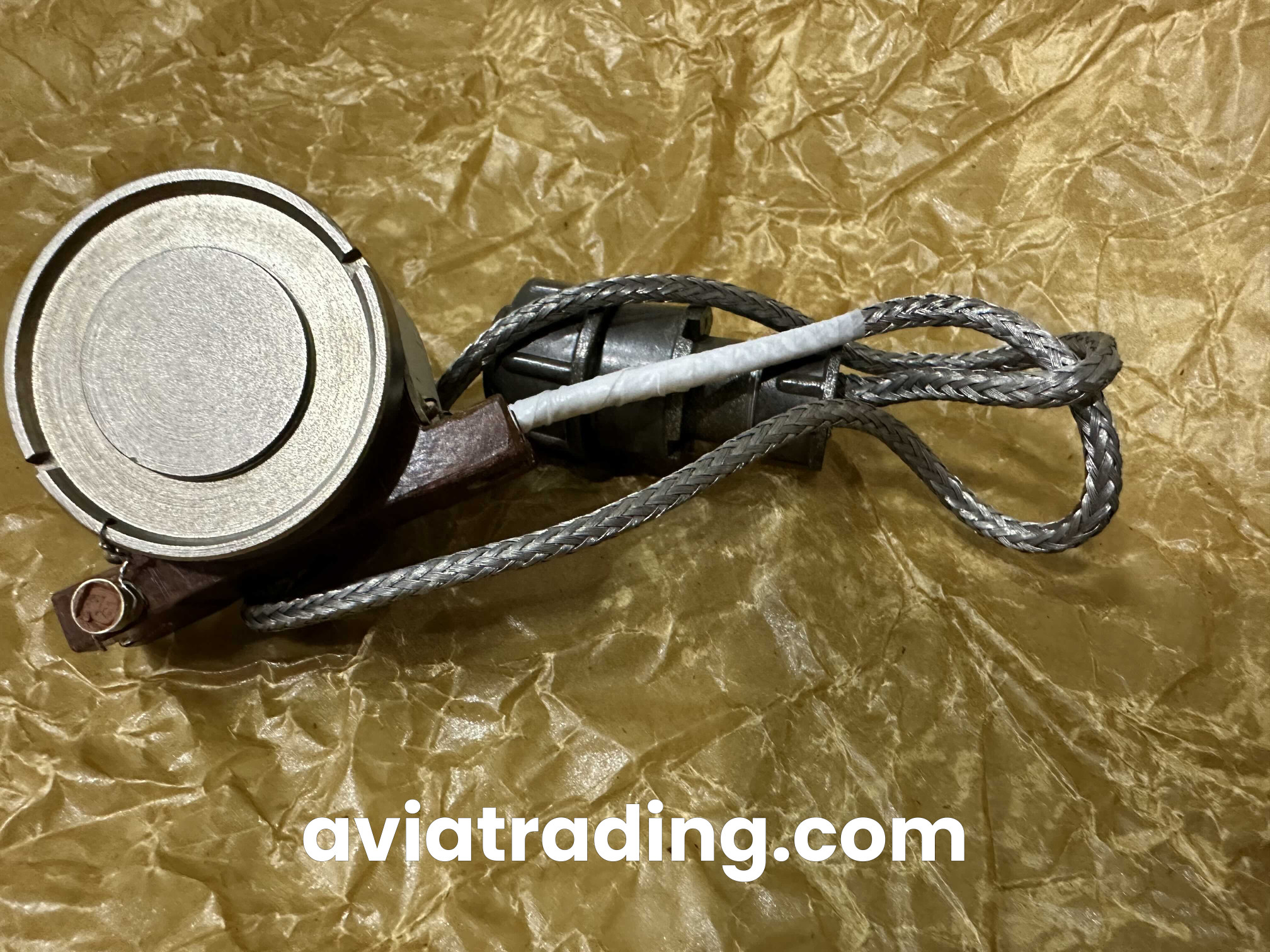

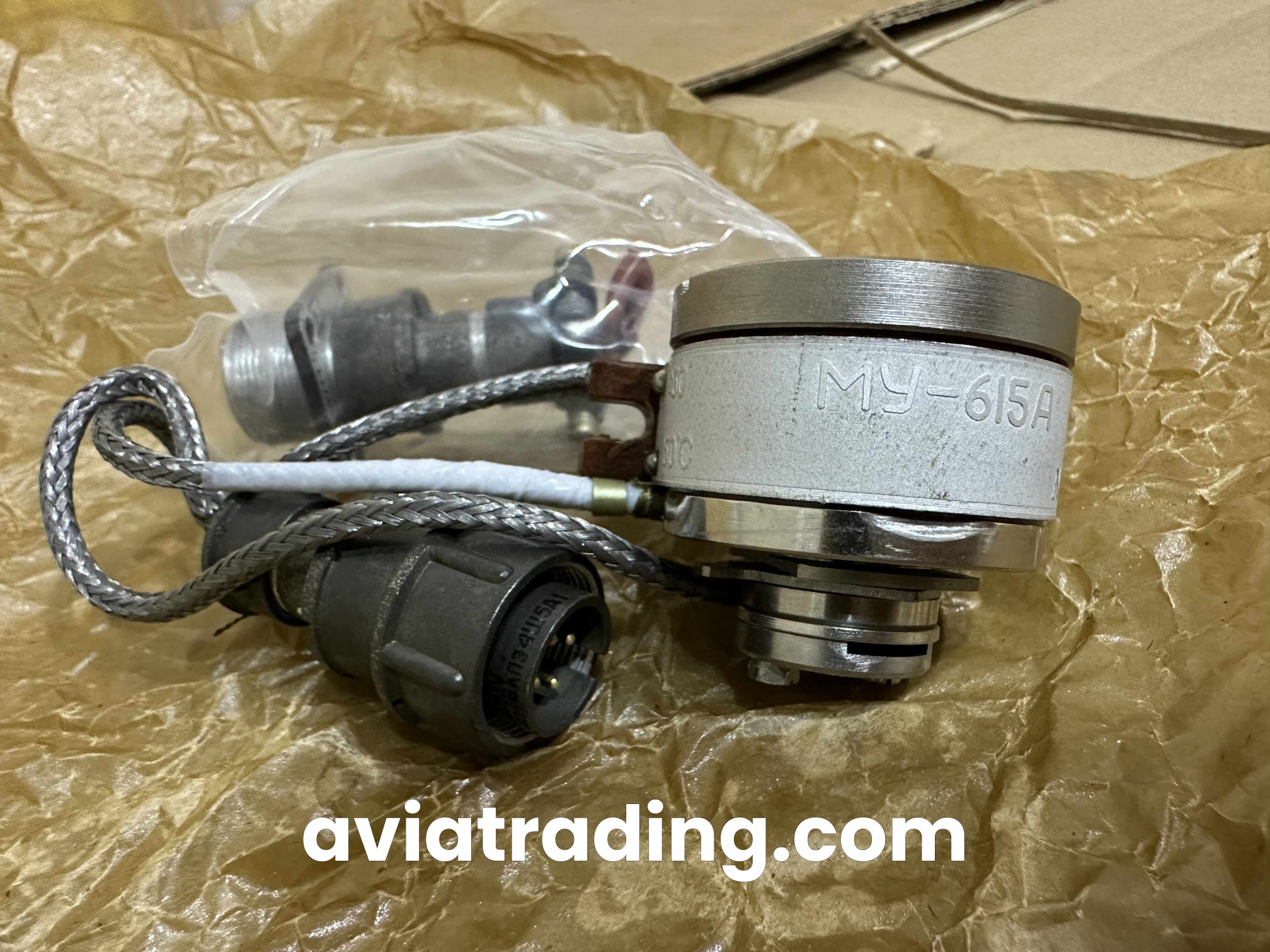

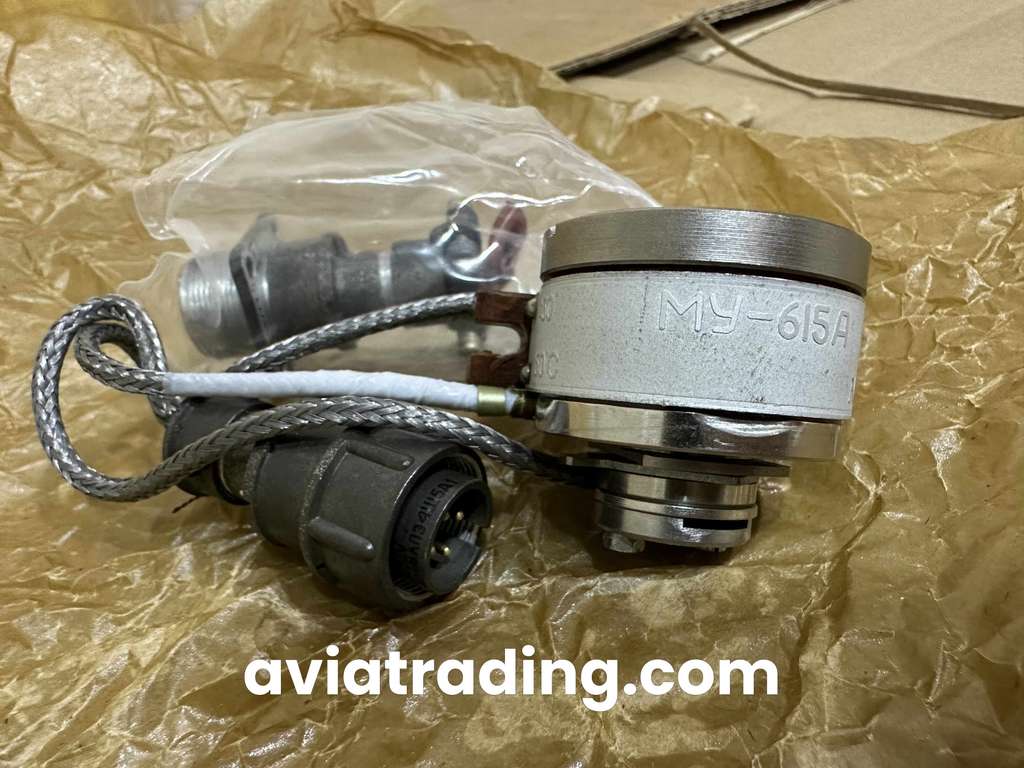

ANGULAR MOTION POTENTIOMETRY DETECTOR, HEATPROOF

MAIN TECHNICAL DATA Parameter name and units of measurement Characteristic Potentiometer slider travel angles in degrees a) working + -30 + -2 b) full + -60 + -2 Error in measuring angles under normal conditions in % No more than + -2 of the entire working measurement range Nonlinearity of the calibration characteristic in % No more than + -1.5 of the entire working measurement range Operating temperature range in C from – 60 to + 150 The sensor is operational at a temperature of + 150C for a long time; at a temperature of + 200 C for a short time (for 10 min.) Supply voltage, V 6 + - 0.5 direct current Potentiometer resistance, Ohm 700 + - 200 The sensor is vibration-resistant in the frequency range from 5 to 300 Hz with a vibration amplitude of no more than 1 mm and vibration overload up to 5 units. Product weight, g, no more than 160

Factory new
