HF7.0JZB11 Pallet Dolly (7 Ton, 520mm Platform) High-Stability Cargo Trailer for ULD Handling & Airport Logistics Systems

Published Jul 9, 2026| 76 views

Standard classification:Ground support equipment—Container & Pallet Dollies

Code

HF7.0JZB11

Condition

FN - Factory New

Type

Other

Brand

Hangfu

No certificates declaredThis part may be sold for non-airworthy use only (display, training, salvage, parts harvest). Verify documentation with the seller before purchase.

Return period

7

Return shipping paid by

Receiver

Additional note

30%deposit 70% balance before shipment Pre Order

Quantity

1 available

Seller information:

AIRDROME EQUIPMENT

120 items in stock

Item cost (1) $ 2,398

Shipping (per item)Upon Request

Total$ 2,398

This item can’t be purchased until shipping is confirmed. Submit a shipping request and the seller will review delivery options and costs.

Specifications & Details

Seller information:

AIRDROME EQUIPMENT

120 items in stock

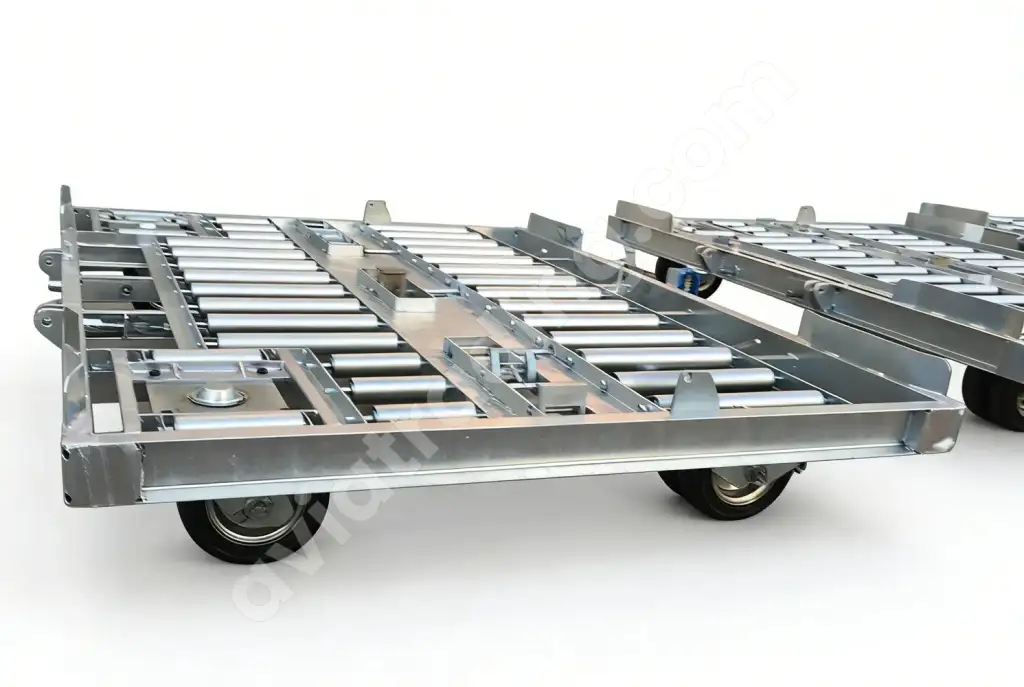

The HF7.0JZB11 pallet dolly is a 7-ton cargo transfer trailer designed for stable handling of aviation pallets and containers in high-frequency logistics environments. With an upgraded 520 mm platform height and reinforced 8-wheel configuration with 400-8 solid tires, this model is engineered to deliver improved balance, smoother alignment during loading, and enhanced durability under continuous use. It is widely used in ULD transport, cargo terminal movement, and airside logistics operations. Key Performance Features Optimized Roller Transfer Structure 28 galvanized rollers (Ø76 × 3.6 mm) Smooth pallet flow with reduced resistance Suitable for frequent loading cycles High-Stability 8-Wheel Configuration Equipped with 8 pcs 400-8 solid tires Improved weight distribution across the platform Reduced vibration during movement 👉 Compared to standard models, this version focuses on stability under load Elevated Platform Design (520 mm) Better alignment with cargo systems Reduces height mismatch during loading/unloading Improves operational efficiency 👉 This is the core difference vs JZB10 Integrated Safety Control System Spring clip locking device Fixed side stoppers Prevents cargo shifting or derailment Designed for secure pallet transport in continuous operations Multi-Unit Towing Compatibility Tow bar supports multi-trailer connection Integrated braking function Rear hook ensures stable linkage Suitable for use with cargo towing systems Flexible Steering System Front steering axle with solid tires Stable control in narrow routes Reliable turning performance under load Wide ULD Compatibility Supports major unit load devices: P1P / P6P pallets LD1, LD2, LD3, LD4, LD7, LD8, LD9, LD11, LD26, LD29, LD39 containers

Item Specification Platform Size 3460 × 2600 mm Platform Height 520 mm Load Capacity 7000 kg Speed 25–30 km/h Frame Material #16 channel steel Roller System Ø76 × 3.6 mm Tire Type 400-8 solid tire Tire Quantity 8 pcs Tow Bar #8 channel steel Deck 3 mm patterned steel Factory Advantage As a specialized cargo trailer manufacturer, we provide: OEM / ODM production Batch manufacturing capability Configurable wheel and roller systems Pre-delivery inspection process Serving global buyers including: Airport operators Ground handling contractors Equipment distributors Use Scenarios ULD pallet transport between zones Cargo terminal internal logistics Airside material movement Multi-trailer towing operations Warehouse to apron transfer Why Choose This Model 520 mm platform improves alignment 8-wheel system enhances stability 400-8 tires support heavier loads 7-ton capacity for mid-heavy operations
