HF18JZB01 Aviation Pallet Dolly (18 Ton Heavy… | Aviatrading

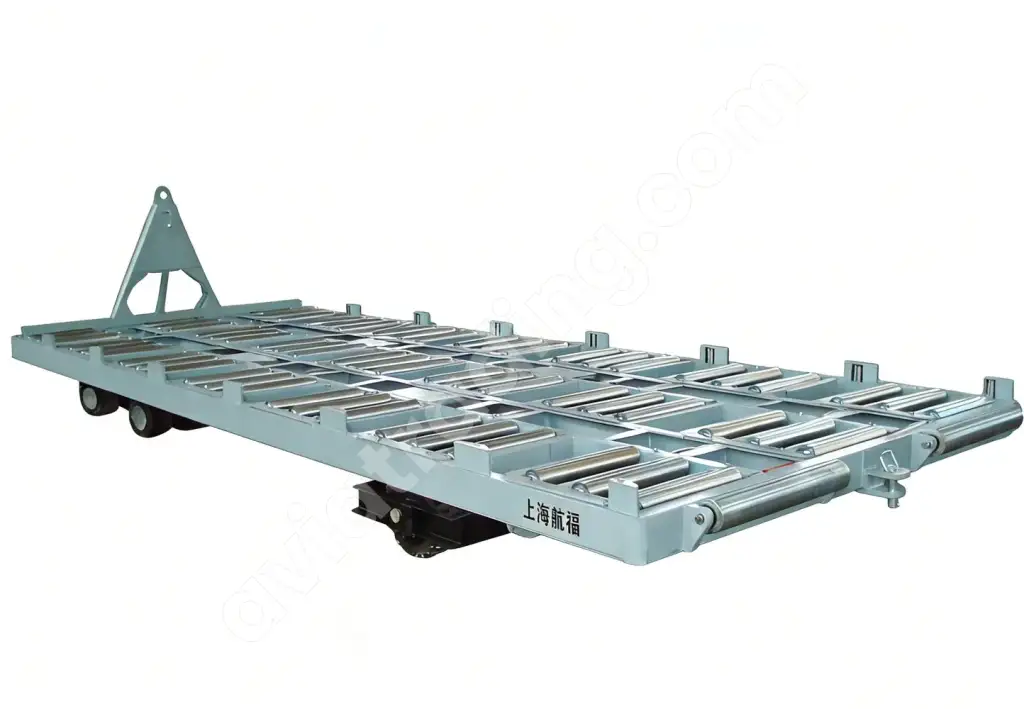

HF18JZB01 Aviation Pallet Dolly (18 Ton Heavy Duty) Ultra Heavy-Duty Airport Ground Support Equipment for Wide-Body Cargo Operations

Published Jul 9, 2026| 184 views

Standard classification:Ground support equipment—Container & Pallet Dollies

Code

HF18JZB01

Condition

FN - Factory New

Type

Other

Brand

Hangfu

No certificates declaredThis part may be sold for non-airworthy use only (display, training, salvage, parts harvest). Verify documentation with the seller before purchase.

Return period

7

Return shipping paid by

Receiver

Additional note

30%deposit 70% balance before shipment Pre Order

Quantity

1 available

Seller information:

AIRDROME EQUIPMENT

120 items in stock

Item cost (1) $ 8,216.92

Shipping (per item)Upon Request

Total$ 8,216.92

This item can’t be purchased until shipping is confirmed. Submit a shipping request and the seller will review delivery options and costs.

Specifications & Details

Seller information:

AIRDROME EQUIPMENT

120 items in stock

The HF18JZB01 aviation pallet dolly is a high-capacity solution designed for heavy-duty airport ground support operations, capable of handling up to 18,000 kg payloads. With a reinforced channel steel + pipe welded structure, a high-density roller system, and advanced stabilization features, this model is ideal for wide-body aircraft cargo handling and high-volume logistics environments. Key Features & Benefits 18 Ton Heavy-Duty Capacity（核心卖点） Maximum load: 18,000 kg Designed for wide-body aircraft pallet transport Suitable for high-intensity airport cargo operations Reinforced Structural Frame Fabricated from #16 channel steel + steel pipe welding High impact resistance and anti-deformation design Built for continuous heavy-duty airport ground handling equipment use Advanced Roller System (42 Rollers) Combination of ￠89×4 mm & ￠95×4 mm rollers Modular small-frame structure Ensures smooth and stable pallet transfer Optimized for aviation cargo loading efficiency Four-Set Swivel Caster Steering System（差异核心） Front axle equipped with 4 sets of swivel casters Superior maneuverability despite large size Ideal for tight airport ramp operations Rear Loading Configuration（区别于常规） Rear-loading design for streamlined cargo flow Better suited for hub airport cargo systems Compatible with conveyor-based workflows Enhanced Safety Restraint System Movable brake limiter + fixed side limiters Prevents pallet bouncing or derailment Ensures safe transport of heavy ULD cargo Heavy-Duty Tire System Solid-core industrial tires Sizes: 266×160 / 400×133 Long service life under heavy load and continuous use Multi-Trailer Connection & Braking Tow bar supports multi-unit towing + braking Efficient for long-distance airside transport Works seamlessly with baggage tug / aircraft towing vehicles Wide Pallet Compatibility Supports large aviation pallets: P1P, P6P PLA, FQA, FQW, PMW, P7E Designed for wide-body cargo aircraft operations

Item Specification Platform Dimensions 6692 × 2726 mm Platform Height 520 mm Loading Capacity 18,000 kg Speed Limit 25–30 km/h Frame Material #16 channel steel + steel pipe Roller System 42 rollers (￠89×4 / ￠95×4 mm) Tire Type Solid-core industrial tires Tire Size 266×160 / 400×133 Tow Bar #10 channel steel Platform Surface 3 mm checker plate Applications Wide-body aircraft cargo handling International cargo hubs Air freight logistics centers High-volume airport terminals Integrated airport ground support equipment systems Why HF18JZB01 for Heavy-Duty Airport Operations ✔ Built for 18 ton wide-body cargo handling ✔ Optimized for high-throughput cargo hub systems ✔ Engineered for continuous heavy-duty GSE operations ✔ Designed for maximum stability and maneuverability ✔ Proven for long service life under extreme workloads
