Name: Electronic engine controller ERD-3VM ser.2
Brand: Motor
Price: 22500.00 USD
Availability: InStock

Electronic engine controller ERD-3VM ser.2

Published Sep 11, 2024| 210 views

ATA classification:28 Fuel

Standard classification:On-board Equipment—Aircraft fuel system

Code

8T3.035.011

Condition

FN - Factory New

Type

Helicopter

Brand

Motor

No certificates declaredThis part may be sold for non-airworthy use only (display, training, salvage, parts harvest). Verify documentation with the seller before purchase.

Return period

Return shipping paid by

Receiver

Quantity

2 available

Seller information:

AVIASPARES

76 items in stock

Item cost (1) $ 22,500

Shipping (per item)Upon Request

Total$ 22,500

This item can’t be purchased until shipping is confirmed. Submit a shipping request and the seller will review delivery options and costs.

Add to cart

Specifications & Details

Seller information:

AVIASPARES

76 items in stock

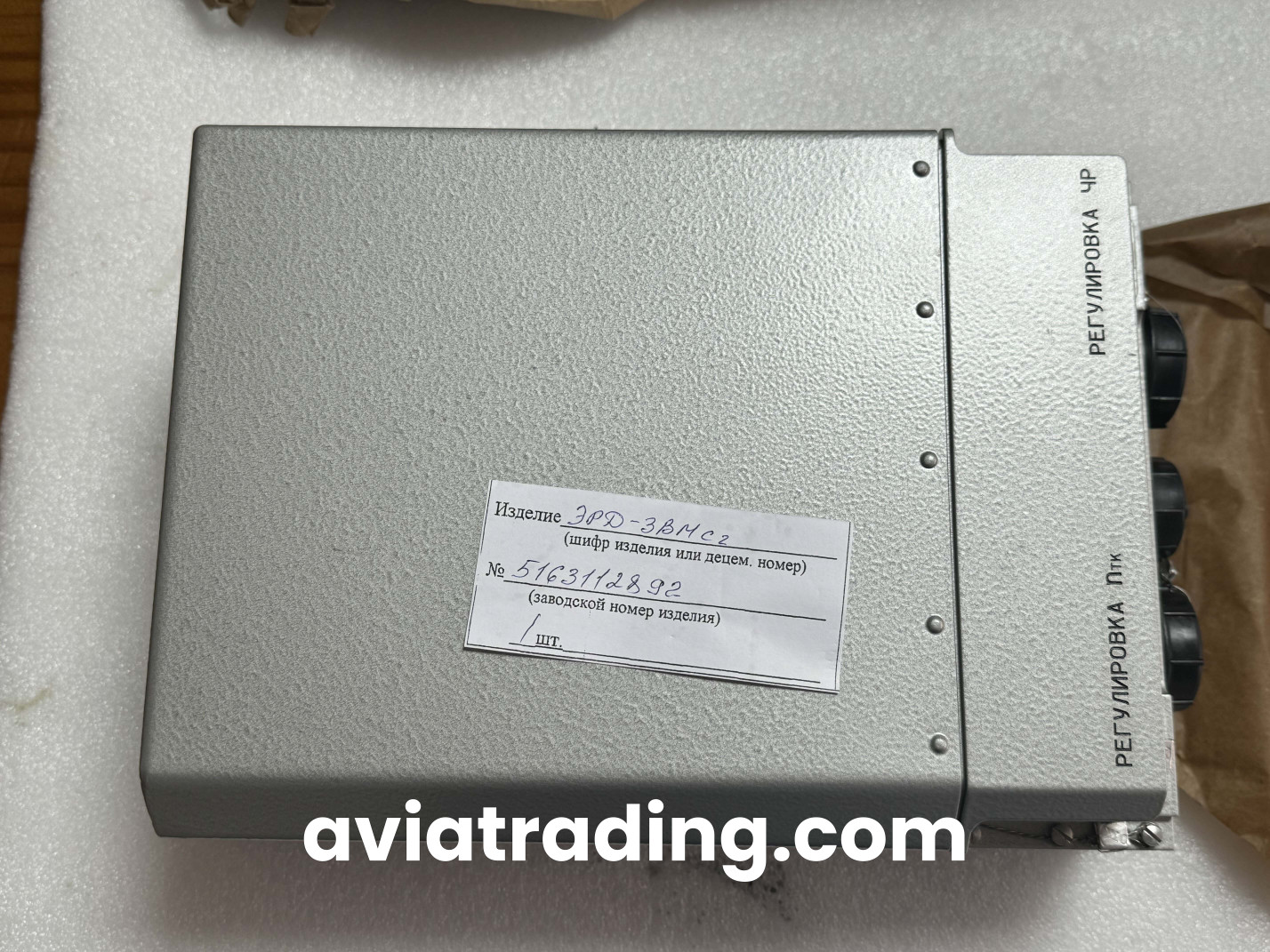

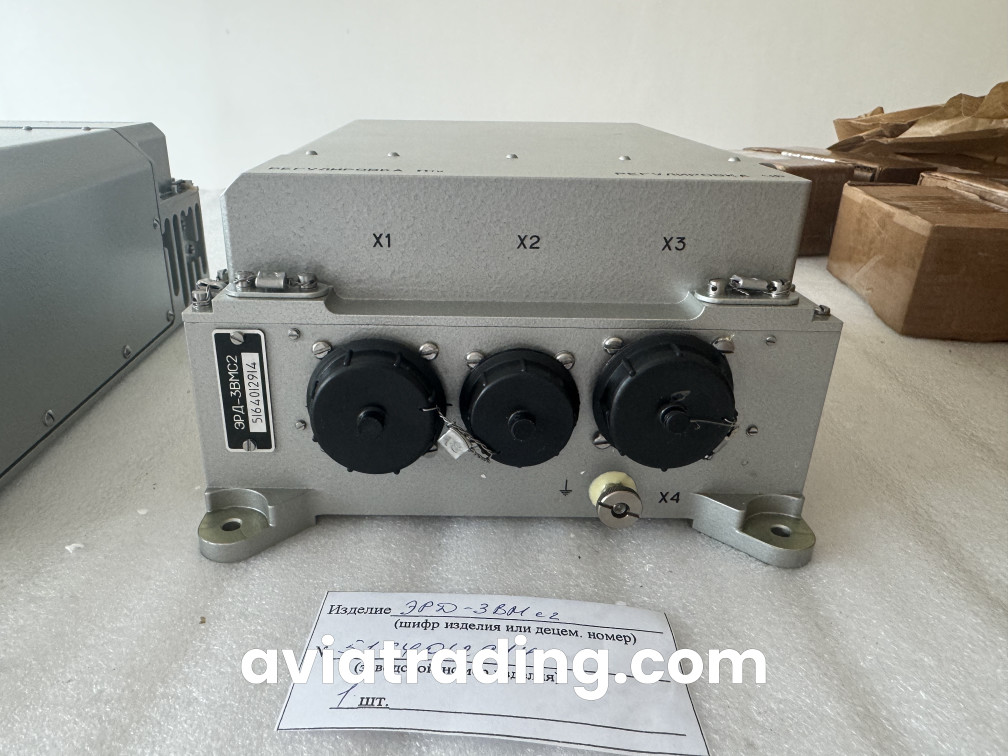

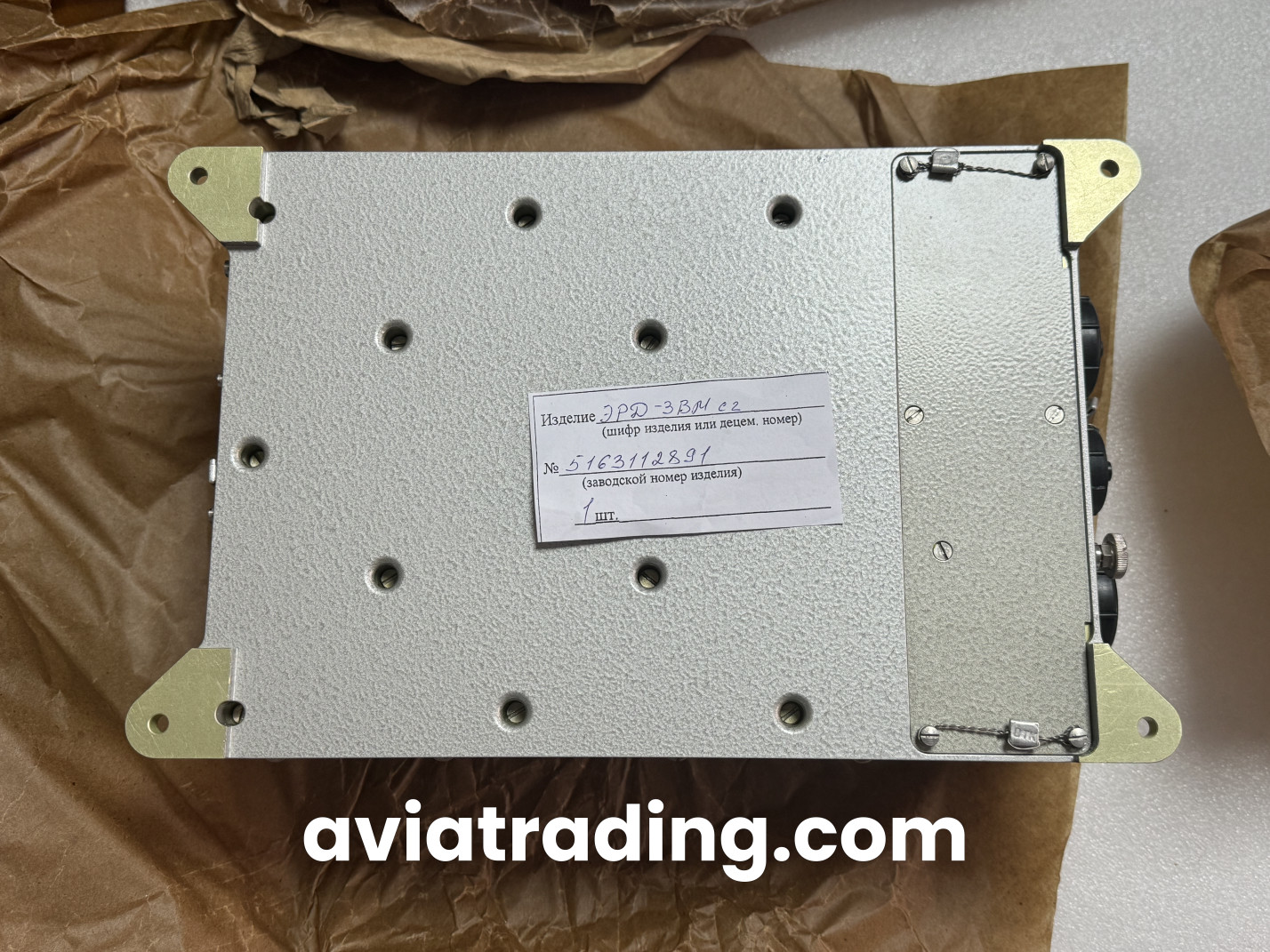

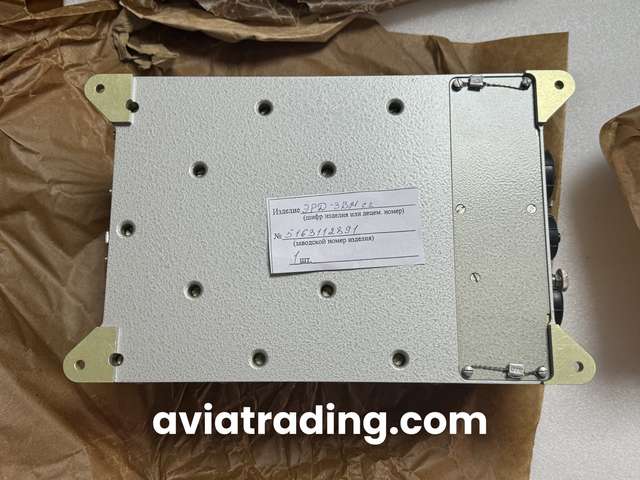

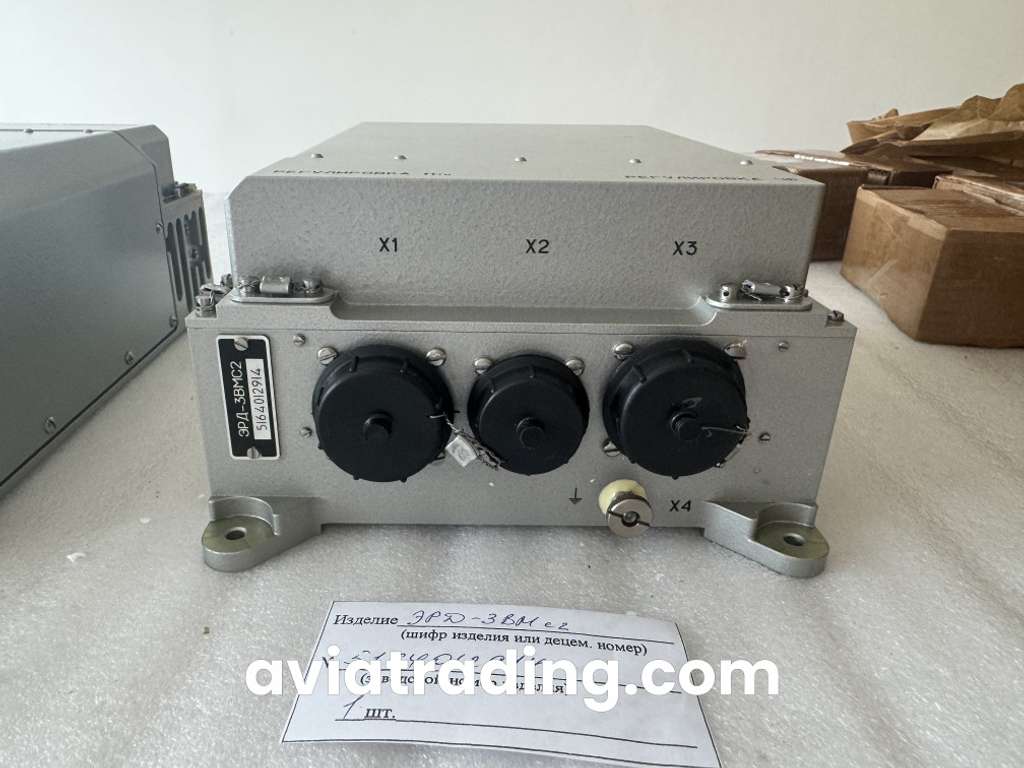

Electronic Engine Controller ERD-3VM Series 2 is part of the electronic section of the engine control system and is designed to generate control signals for the actuator of the pump regulator, which regulates fuel flow during speed control, the MKT-163 actuator for adjusting the throttle limiter, and the engine shutdown actuator during the free turbine spin-up. The electronic engine controller is a specialized electronic digital computing machine with a fixed program, operating in real-time, and equipped with interfaces for sensors and the actuator of the electronic section of the control system. The electronic engine controller is intended to receive electrical signals from the sensors of the electronic section of the control system, normalize and convert the signals received from the sensors, and generate control signals for the fuel flow actuator and engine shutdown according to a predefined program. Structurally, the electronic engine controller consists of a cast base with four mounting legs and a casing. The legs have holes for rigid mounting of the controller on the helicopter. To improve heat dissipation, the mounting surfaces of the legs are free from paint, and the sides of the base are equipped with fins. It is used in TV3-117 VM (A) engines.

Here is the translation of the provided specifications into English: | Parameters | Value |-------------------------------------------|-----------------------------------------------| | Power supply (as per GOST 19705-89, sec. 2), V | 27 | Power consumption, W, no more than | 60 | Accuracy of maintaining controlled parameters: | - Turbocompressor speed, % | ± 0.5 | - Maximum turbocompressor speed, % | ± 0.15 | - Reduced turbocompressor speed, % | ± 0.35 | Frequency of control signal output to the fuel flow actuator, Hz | 24.41 | Frequency range, Hz | up to 300 | Delay in control signal output to the engine shutdown actuator, s, no more than | 0.03 | Current switched by the controller in the signal lamp circuits (indicators), A, no more than | 0.11 | Operating mode: continuous, continuous operation time, h, no more than | 10 | Controller weight, kg, no more than | 4.3 | Overall dimensions, mm | 307 x 197 x 115 | Operating ambient temperature, °C | from –60 to +60 | Reduced ambient pressure, Pa | up to 46662 Pa (0.476 kgf/cm²).
