Published Mar 3, 2025| 306 views

ATA classification:24 Electrical Power—24-20 Distribution—Contactor

Standard classification:Electrotechnical equipment—Contact switches

Code

6291-67

Condition

NE - New Equipment

Type

Helicopter

Brand

TKD

No certificates declaredThis part may be sold for non-airworthy use only (display, training, salvage, parts harvest). Verify documentation with the seller before purchase.

Return period

Return shipping paid by

Receiver

Quantity

8 available

Seller information:

AVIASPARES

76 items in stock

Item cost (1) $ 100.74

Shipping (per item)Upon Request

Total$ 100.74

This item can’t be purchased until shipping is confirmed. Submit a shipping request and the seller will review delivery options and costs.

Add to cart

Specifications & Details

Seller information:

AVIASPARES

76 items in stock

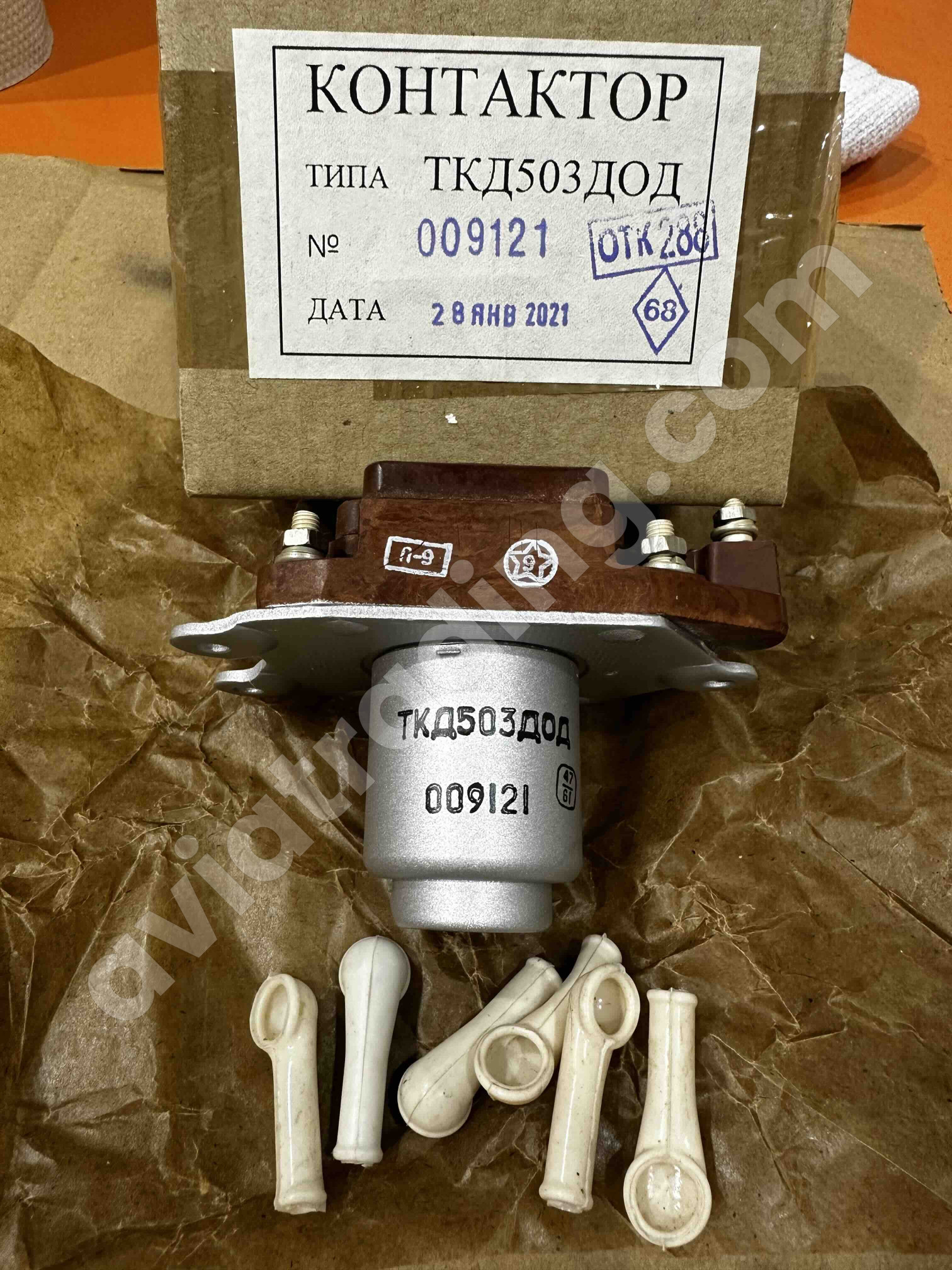

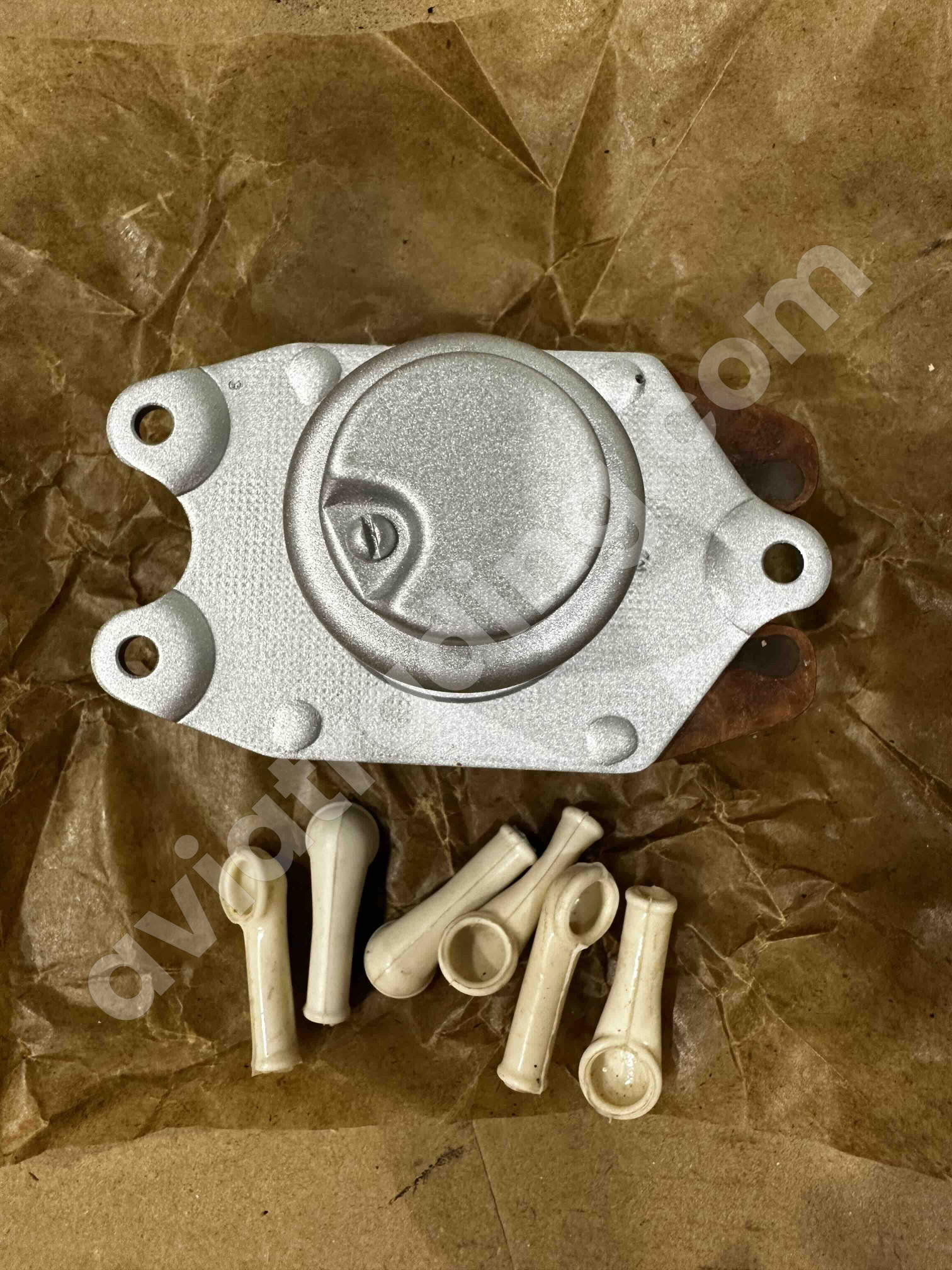

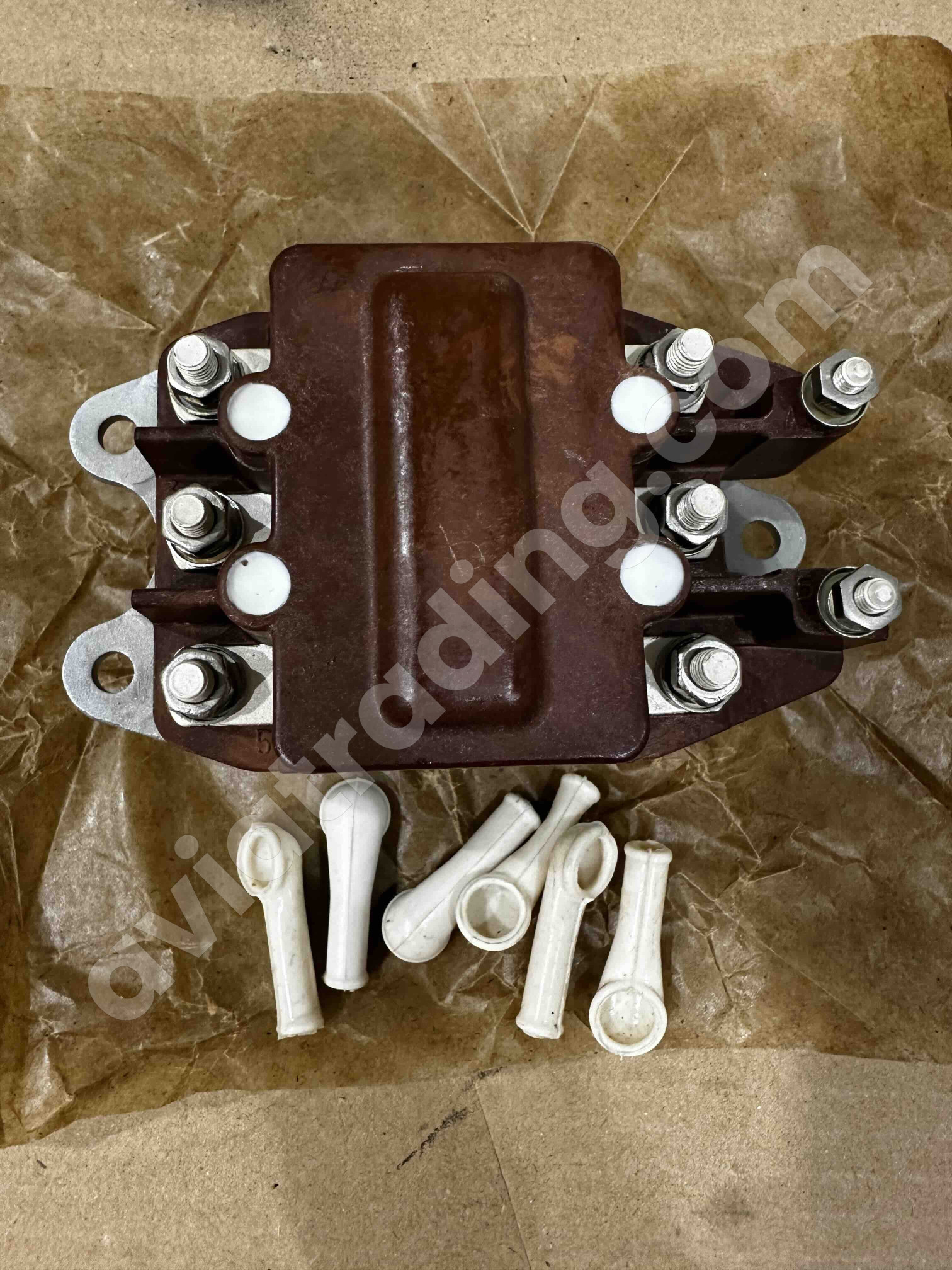

TKD503DOD Electromagnetic Contactor The TKD503DOD is an electromagnetic three-pole, normally open contactor with a double-break circuit design. It features a coil specifically engineered for operation in a 27V DC network. The device includes three independent normally open contacts, each rated for 50A. This contactor is designed to switch DC circuits up to 30V and three-phase AC circuits up to 380V. It is primarily used in aviation electrical systems, both onboard and in ground-based radio and electronic equipment. Built for continuous operation, it is capable of functioning reliably in various climatic conditions, including tropical environments. The TKD503DOD has a non-hermetic, encapsulated enclosure for enhanced durability.

Key Technical and Operational Specifications of the TKD503DOD Contactor • Control Circuit Voltage (DC): 27V • Switched DC Voltage Range: 5V – 30V • Switched AC Voltage Range (360-400Hz): 20V – 220V • Switched AC Voltage Range (45-55Hz): 20V – 380V • Switched Current Range: 0.2A – 50A • Design: Open-frame, non-hermetic • Operating Temperature Range: -60°C to +85°C • Dimensions (mm): 133 × 63 × 81 • Weight: 600g This TKD503DOD contactor is engineered for reliable switching of DC and AC circuits across a broad voltage range. Designed to operate in extreme temperature conditions, it is well-suited for aviation, ground-based radio equipment, and industrial applications where durability and performance stability are essential.

New

New Listings

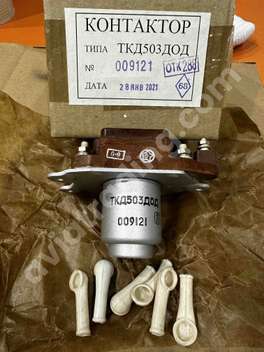

TKD503DOD
