TV3-117VM ser.2

Condition

OH - Overhauled

Type

Helicopter

Brand

Klimov

Return period

Return shipping paid by

Receiver

Quantity

2 available

Seller information:

AVIASPARES

75 items in stock

Item cost (1) $ 950,000

Shipping (per item)Upon Request

Total$ 950,000

This item can’t be purchased until shipping is confirmed. Submit a shipping request and the seller will review delivery options and costs.

Add to cart

Specifications & Details

Seller information:

AVIASPARES

75 items in stock

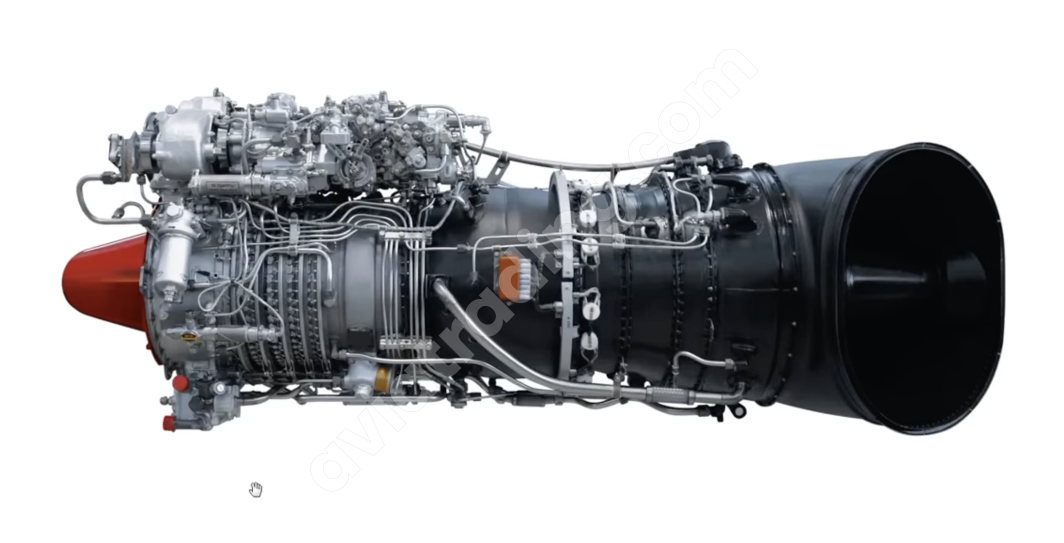

For Sale: TV3-117VM Series 02 Turboshaft (Mi-8MT/Mi-17) — Overhauled 09/2024 • Condition: Overhauled, ✔️ • Since Overhaul (TSO/CSO): 0 hours / 0 cycles • Configuration: Complete engine with accessories per passport; ready to install • Compatibility: Mi-8MT / Mi-17 (incl. Mi-8MTV-1/-2, Mi-17-1V) • Docs: Engine passport, overhaul certificate, preservation/packing docs • Location / Incoterms: UAE, EXW [Dubai/Sharjah]

Type: Turboshaft with a free power turbine (2-stage gas-generator turbine + 2-stage free turbine), 12-stage axial compressor, annular combustor. • Applications: Mi-8MT / Mi-17 (incl. Mi-8MTV-1/-2, Mi-17-1V). • Output shaft rotation: Left-hand (per manual). • Dry weight: ~293–300 kg. • Dimensions (L×W×H): approx. 2055 × 650 × 730 mm. • Airflow at inlet: ~8.7 kg/s. • Overall pressure ratio: ~9.4. Power Ratings (ISA, sea level — series references) • Take-off (TO): ≈ 2,000 shp (≈ 1,470 kW). • OEI 2.5-min (emergency): up to 2,200 shp (≈ 1,620 kW). • OEI 30-min: ≈ 2,000 shp. • Max continuous (MCP): about 1,500 shp (≈ 1,100 kW). Rotational Speeds (typical) • Free power turbine: ~15,000 rpm. • Gas generator: per engine manual (usually shown as “% Ng”). Temperature References (series guidance) • T* (turbine gas temperature) emergency / take-off: approx. ~920 °C / ~890 °C. (Exact TGT/TIT limits and tolerances per the engine manual/logbook.) Specific Fuel Consumption (SFC, typical) • Take-off: ~0.31–0.34 kg/(hp·h) (≈ 0.42–0.46 kg/(kWh)). • Cruise/continuous: ~0.29–0.32 kg/(hp·h) (≈ 0.39–0.44 kg/(kWh)). Fuels and Oils • Fuel: TS-1 / RT / Jet A-1 (and approved equivalents per manual). • Oil: MS-8P (or approved equivalent). Time Limits (typical for Series 02; subject to bulletins) • TBO (time between overhauls): ~1,500 h. • Service life (assigned life): ~3,000 h.

OH 09.2024, Since Overhaul (TSO/CSO): 0 hours / 0 cycles
