Code

HFSH1-4-5

Condition

FN - Factory New

Type

Other

Brand

Hangfu

Return period

Return shipping paid by

Receiver

Additional note

30%deposit 70% balance before shipment Pre Order

Quantity

1 available

Seller information:

AIRDROME EQUIPMENT

120 items in stock

Item cost (1) $ 1,486.37

Shipping (per item)Upon Request

Total$ 1,486.37

This item can’t be purchased until shipping is confirmed. Submit a shipping request and the seller will review delivery options and costs.

Add to cart

Specifications & Details

Seller information:

AIRDROME EQUIPMENT

120 items in stock

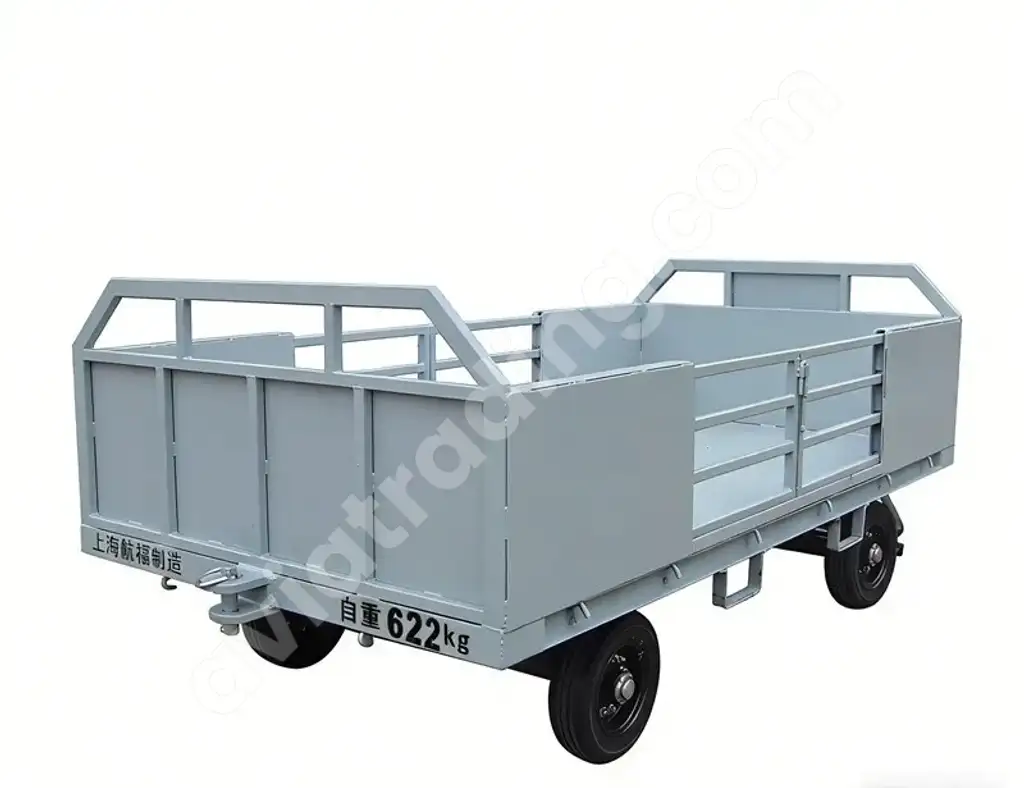

Airport Ground Support Equipment (GSE) | Aircraft Baggage Trailer | Airport Cargo Trailer Product Description The HFSH1-4-5 Four-Rail Luggage Trailer is an advanced airport ground support equipment (GSE) solution engineered for safe and efficient transportation of luggage, parcels, and bulk cargo in airport environments. This model features a four-rail square tube frame structure with movable side doors, offering enhanced cargo protection and convenient loading/unloading. The two-sided loading system with inner movable doors significantly improves operational efficiency and safety during airport baggage handling operations. Designed for integration into modern airport ground handling systems, this airport baggage trailer works seamlessly with aircraft tow tractors, airport baggage tugs, and electric tow tractors, making it an essential component of aviation ground support equipment fleets. Key Features Four-rail square tube frame structure for superior durability Movable inner side doors for efficient cargo loading/unloading Built-in safety pin system for secure operation Two-sided loading design for improved handling efficiency Rear self-locking hook for safe multi-trailer towing Compatible with aircraft tow tractor, baggage tug, and towing equipment Dual-function tow bar (towing + braking system) Swivel front axle for smooth maneuverability Solid-core wear-resistant tires for long service life Customizable platform materials and dimensions Designed for airport ground handling equipment (GSE) systems

Parameter Specification Platform Dimension 3000 × 1500 mm Platform Height 560 mm Loading Capacity 2000 kg Max Speed 25 km/h Tire 400-8 Solid Tire Frame Material #8 Standard Channel Steel Rail Structure 40 × 40 × 2 mm Square Tube Rail Height Front/Rear: 600 mm; Sides: 400 mm Tow Bar Ø42 × 5 mm Steel Tube Platform Surface 3 mm Checker Plate Loading Type Two-Sided Loading with Side Doors Applications This airport luggage trailer / aircraft baggage trailer is widely used in: Airport baggage transport systems Airline ground handling operations Cargo and parcel logistics Aviation ground service equipment (GSE) fleets Aircraft turnaround and ramp operations Compatible with: Aircraft tow tractor Airport baggage tug Electric tow tractor Aircraft towing equipment
