HFDQY6280✈️ 220kN Heavy Aircraft Tug for 300 Ton… | Aviatrading

HFDQY6280✈️ 220kN Heavy Aircraft Tug for 300 Ton Towing 4WD 4WS Electric Aircraft Towing Vehicle for Large Airport Operations

Published Jul 9, 2026| 174 views

Standard classification:Ground support equipment—towing tug

Code

HFDQY6280

Condition

FN - Factory New

Type

Other

Brand

Hangfu

No certificates declaredThis part may be sold for non-airworthy use only (display, training, salvage, parts harvest). Verify documentation with the seller before purchase.

Return period

7

Return shipping paid by

Receiver

Additional note

30%deposit 70% balance before shipment Pre Order

Quantity

1 available

Seller information:

AIRDROME EQUIPMENT

120 items in stock

Item cost (1) $ 277,923.08

Shipping (per item)Upon Request

Total$ 277,923.08

This item can’t be purchased until shipping is confirmed. Submit a shipping request and the seller will review delivery options and costs.

Specifications & Details

Seller information:

AIRDROME EQUIPMENT

120 items in stock

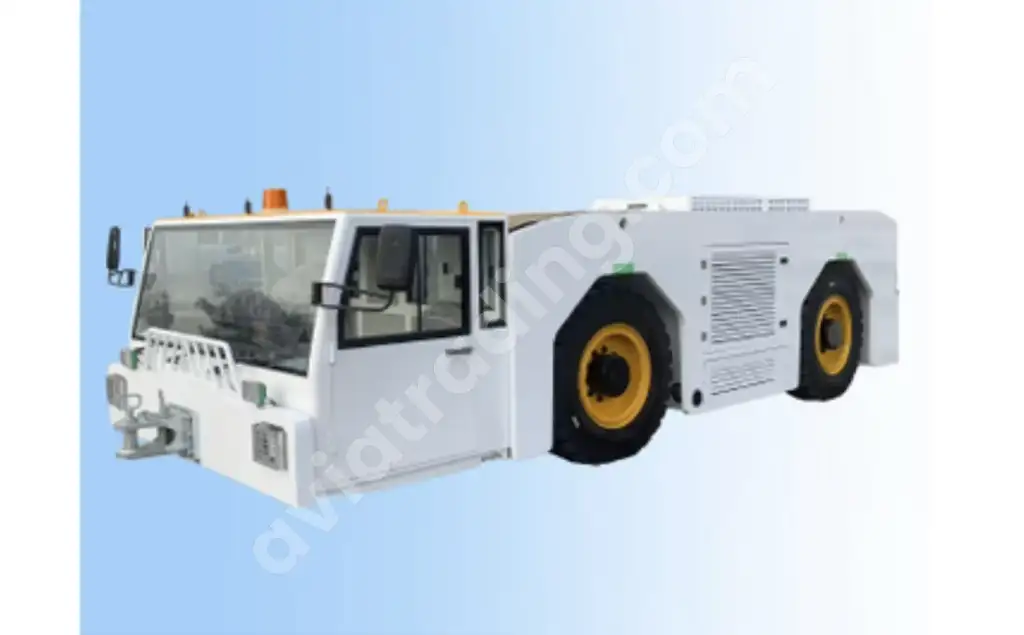

This 220kN heavy aircraft tug is a next-generation electric aircraft towing vehicle designed for ultra-heavy aircraft up to 300 tons. Developed for large-scale airport ground support equipment (GSE) operations, it integrates a high-voltage electric drive system with full hydraulic control, delivering stable traction, precise maneuverability, and high operational safety. As a specialized airport tug manufacturer, this model is built for: Wide-body and heavy aircraft towing High-load airport ground handling Aircraft pushback and long-distance transfer Military and special aviation operations 🚀 Ultra-Heavy Aircraft Towing Capability With 220kN drawbar pull, this model is engineered for extreme-duty applications: Max towing capacity: 300,000 kg Designed for heavy aircraft towing and airport logistics Stable traction under high load conditions This makes it suitable for the most demanding airport towing equipment scenarios. 🔄 4WD + 4WS System for Maximum Control Unlike standard airport tugs, this model features: Four-wheel drive (4WD) for maximum traction Four-wheel steering (4WS) for maneuverability Multiple steering modes for complex airport layouts Turning capability: Outer turning diameter: 9.9 m (four-wheel steering) ⚙️ High-Voltage Electric Drive System DC permanent magnet synchronous motor (MOLA) High-power frequency converter control Stepless speed regulation This system ensures smooth acceleration and precise control for aircraft towing operations. 🛑 Advanced Safety Protection System Designed for ultra-heavy-duty applications, it includes: Battery reverse connection protection Output drive short-circuit protection Overheat protection system These features ensure safe operation during heavy aircraft towing tasks. 🔧 Heavy-Duty Structure & Stability High-strength steel body structure Longitudinal steel leaf spring suspension German KESSLER hydraulic steering bridge Hydraulic buffer transmission system Ensures stability, durability, and operator comfort in continuous airport ground handling operations. 🔋 High-Capacity Power System Battery voltage: 492.66V (6 combinations) Capacity: 803.98Ah / 396.09 kWh Supports lead-acid + high-voltage lithium configuration Designed for long-duration, high-load airport towing operations. 🏭 Aircraft Tug Manufacturer Advantage Direct airport ground support equipment manufacturer Experience in ultra-heavy aircraft towing vehicles Integration of global premium components (KESSLER / MOLA / MURPHY) OEM customization for special aircraft requirements Reliable supply for international airport projects

Parameter Specification Power Pure Electric Motor MOLA Controller MOLA Battery Voltage 492.66V Battery Capacity 803.98Ah / 396.09 kWh Dimensions (L×W×H) 6500 (+780 front & rear hitch) × 2600 × 1870 mm Vehicle Weight 29,000 kg Drawbar Pull 220 kN Max Towing Capacity 300,000 kg Turning Diameter 9.9 m (4WS outer) Ground Clearance 195 mm 🌍 Application Scenarios This ultra heavy aircraft tug is widely used in: International hub airports Aircraft pushback and towing operations Heavy aviation logistics Military and special aircraft support High-capacity ground handling systems 💡 Why Choose This 220kN Aircraft Tug Designed for 300 ton aircraft towing capacity 4WD + 4WS system for superior control High-voltage electric system for efficiency Strong safety protection for heavy-duty use Factory-direct supply for global airport projects
