HF1023D-2 Standing Electric Assisted Passenger Boarding Stairs** ### Smart Aircraft Boarding Ladder | Airport Ground Support Equipment

Published Jul 10, 2026| 153 views

Standard classification:Ground support equipment—Passenger Boarding Stairs

Code

HF1023D-2

Condition

FN - Factory New

Type

Other

Brand

Hangfu

No certificates declaredThis part may be sold for non-airworthy use only (display, training, salvage, parts harvest). Verify documentation with the seller before purchase.

Return period

7

Return shipping paid by

Receiver

Additional note

30%deposit 70% balance before shipment Pre Order

Quantity

1 available

Seller information:

AIRDROME EQUIPMENT

120 items in stock

Item cost (1) $ 17,923.08

Shipping (per item)Upon Request

Total$ 17,923.08

This item can’t be purchased until shipping is confirmed. Submit a shipping request and the seller will review delivery options and costs.

Specifications & Details

Seller information:

AIRDROME EQUIPMENT

120 items in stock

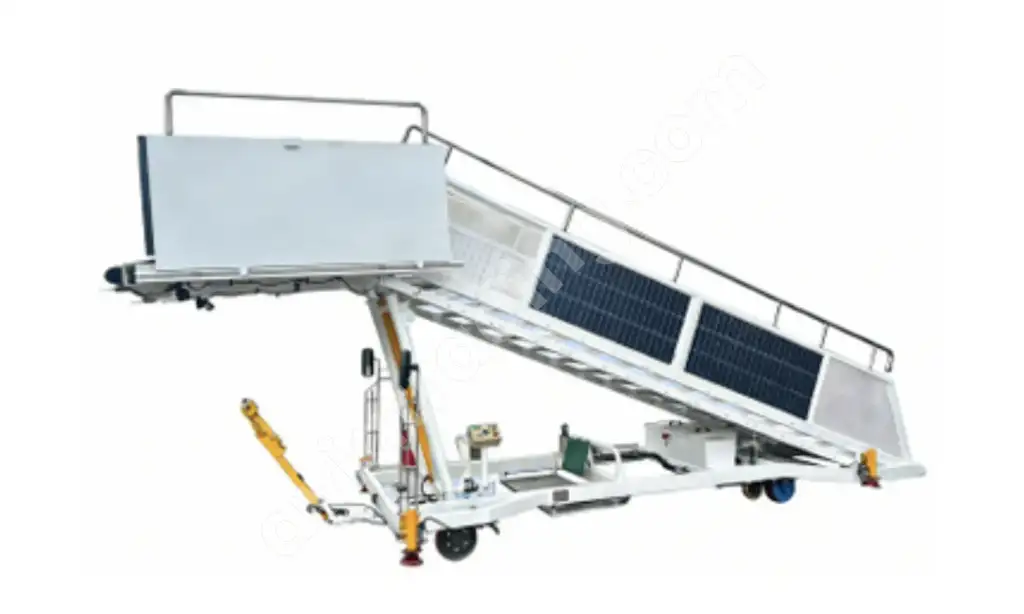

The **HF1023D-2 standing electric assisted passenger boarding stairs** is an advanced **aircraft boarding ladder** designed for efficient airport ground handling operations. As modern **airport ground support equipment (GSE)**, it combines **electric-assisted mobility, hydraulic lifting, and intelligent control systems** to ensure safe and fast aircraft boarding. Featuring a **standing operation design with 3-speed modes**, this model significantly improves **medium and long-distance movement efficiency** across airport aprons. Integrated with **Curtis AC variable frequency controller and AC drive motor**, it delivers smooth **stepless speed control** and precise maneuverability. Equipped with **solar-powered ETFE panels and 24V 230AH battery storage**, the system supports **long-duration continuous operation**, making it an eco-friendly and energy-saving solution for modern airports. --- ## 🛫 **Aircraft Compatibility** Suitable for a wide range of aircraft: ✔ Regional aircraft ✔ Narrow-body aircraft ✔ Turboprop aircraft **Typical models:** * Embraer E170 / E190 * Bombardier CRJ series * COMAC ARJ21 * ATR 72 / Dash 8 --- ## ⚙️ **Key Features** ### 🔋 Standing Electric Assisted Drive * Standing operation design * 3-speed switching modes * 1500W AC drive motor * Smooth stepless speed control ### 🔧 Hydraulic Lifting System * 2200W hydraulic pump motor * Platform height: **2050–3650 (3800) mm** * Parallel lifting structure ensures balance ### ☀️ Solar Energy System * ETFE anti-crack solar panel * 24V / 230AH battery storage * Long continuous operation ### 🛡️ Safety & Stability * Hydraulic support system * Stable lifting cylinders * Anti-slip step structure * Mechanical + hydraulic stability ### 👷 Efficient Operation * Faster movement for medium/long distance * One-person operation * Easy control and positioning

The **HF1023D-2 Electric Assisted Passenger Boarding Stair** is designed for efficient airport passenger boarding and ground handling operations. Its key technical specifications are as follows: * **Model:** HF1023D-2 * **Operation Type:** Electric-assisted hand-push (standing operation) * **System Voltage:** 24V * **Drive Motor Power:** 1500W * **Hydraulic Pump Power:** 2200W * **Hydraulic Oil Tank Capacity:** 12 L * **Battery Capacity:** 230Ah * **Platform Height:** Adjustable from **2050 mm (1800 mm optional)** to **3650 mm (3800 mm optional)** * **Overall Dimensions (L × W × H):** 7040 × 2100 × 3150 mm * **Wheelbase:** 3240 mm * **Ground Clearance:** 150 mm * **Number of Steps:** 17 * **Step Height:** Adjustable from 110 mm to 200 mm * **Platform Size:** 1700 × 1500 mm * **Maximum Passenger Capacity:** Up to 23 persons * **Platform Capacity:** Up to 4 persons * **Maximum Travel Speed:** 6.5 km/h * **Minimum Turning Diameter:** ≤13,000 mm * **Lifting Cylinder:** 80/45 mm * **Net Weight:** 1810 kg ## Application Scenarios The HF1023D-2 is designed to support a wide range of airport ground operations, including: * Airport passenger boarding * Aircraft ground handling operations * Remote apron passenger service * Medium- and long-distance apron movement * Airline and airport terminal support operations ## Factory Advantages As a professional manufacturer of airport ground support equipment, we provide: * Professional airport equipment manufacturing expertise * More than 20 years of experience in aviation ground support equipment * Export-grade production and quality management standards * OEM and ODM customization services to meet customer requirements * Reliable manufacturing capacity with strict quality control * Global delivery and responsive technical support
