Electric Tow Tractor HFDQY060E – Airport Ground Support Electric Tug Vehicle
Electric Tow Tractor HFDQY060E – Airport Ground Support Electric Tug Vehicle
Electric Tow Tractor HFDQY060E – Airport Ground Support Electric Tug Vehicle
Electric Tow Tractor HFDQY060E – Airport Ground Support Electric Tug Vehicle
Electric Tow Tractor HFDQY060E – Airport Ground Support Electric Tug Vehicle
Electric Tow Tractor HFDQY060E – Airport Ground Support Electric Tug Vehicle
Electric Tow Tractor HFDQY060E – Airport Ground Support Electric Tug Vehicle
Electric Tow Tractor HFDQY060E – Airport Ground Support Electric Tug Vehicle
Electric Tow Tractor HFDQY060E – Airport Ground Support Electric Tug Vehicle
Electric Tow Tractor HFDQY060E – Airport Ground Support Electric Tug Vehicle
Electric Tow Tractor HFDQY060E – Airport Ground Support Electric Tug Vehicle
Electric Tow Tractor HFDQY060E – Airport Ground Support Electric Tug Vehicle
Electric Tow Tractor HFDQY060E – Airport Ground Support Electric Tug Vehicle
Electric Tow Tractor HFDQY060E – Airport Ground Support Electric Tug Vehicle

Electric Tow Tractor HFDQY060E – Airport Ground Support Electric Tug Vehicle

Temporary unavailable
Published Jul 6, 2026| 131 views
Standard classification:Ground support equipment—Tow Tractors & Baggage Tractors
Code
HFDQY060E
Condition
FN - Factory New
Type
Other
Brand
hangfu
No certificates declaredThis part may be sold for non-airworthy use only (display, training, salvage, parts harvest). Verify documentation with the seller before purchase.
Intended use not specified. Buyer should verify intended use and documentation with the seller.
Return period
7
Return shipping paid by
Receiver
Additional note
30%deposite 70% balance before shipment
Quantity
1 available
Seller information:
AIRDROME EQUIPMENT
120 items in stock
Item cost (1) $ 16,923
Shipping (per item)Upon Request
Total$ 16,923

This item can’t be purchased until shipping is confirmed. Submit a shipping request and the seller will review delivery options and costs.

Add to cart

Specifications & Details

Seller information:
AIRDROME EQUIPMENT
120 items in stock
Report item

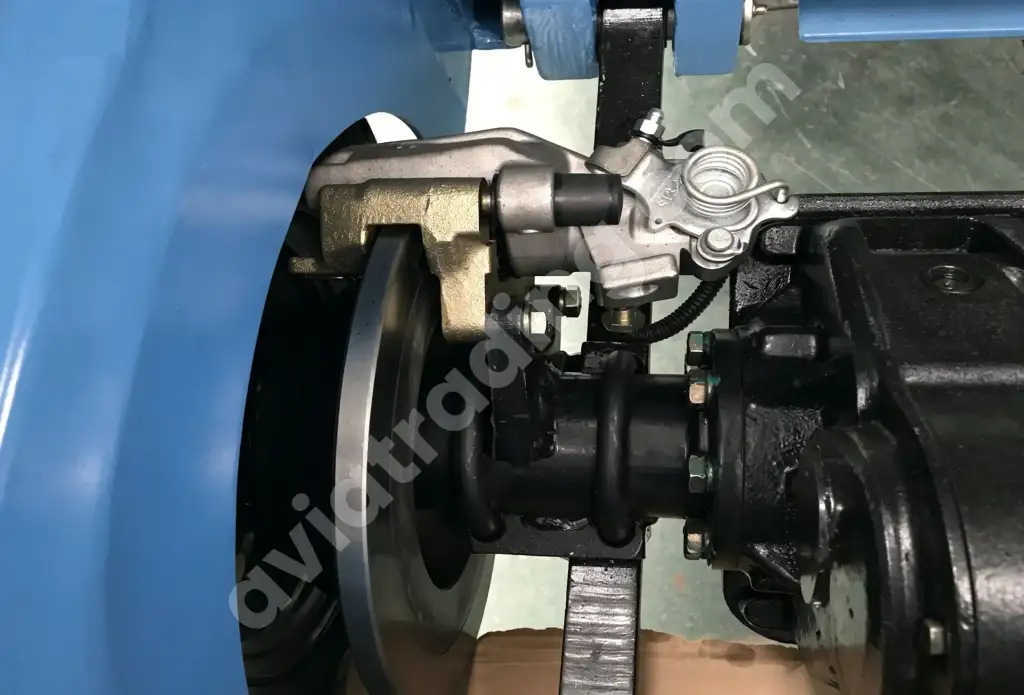

Application Scenarios This electric airport tow tractor is widely deployed in: ✈️ Airside baggage transfer operations 📦 Air cargo terminal logistics handling 🚚 Freight yard trailer movement systems 🚆 Rail freight intermodal transfer stations 🏭 Industrial production material circulation 💊 Pharmaceutical cold-chain distribution centers 📮 Express parcel sorting hubs 🛡️ Military logistics and defense supply bases Advanced System Highlights ⚙️ Curtis Frequency Conversion Drive System Provides smooth acceleration curves, optimized torque response, and high stability for airport towing operations. 🔋 Multi-Energy Platform Design Supports both standard industrial lead-acid traction batteries and advanced lithium iron phosphate energy modules, enabling flexible procurement strategies. 🛞 Compact Maneuverability Chassis Three-wheel structural layout significantly improves turning efficiency in narrow airport apron corridors and warehouse aisles. 🛑 Industrial Hydraulic Bra

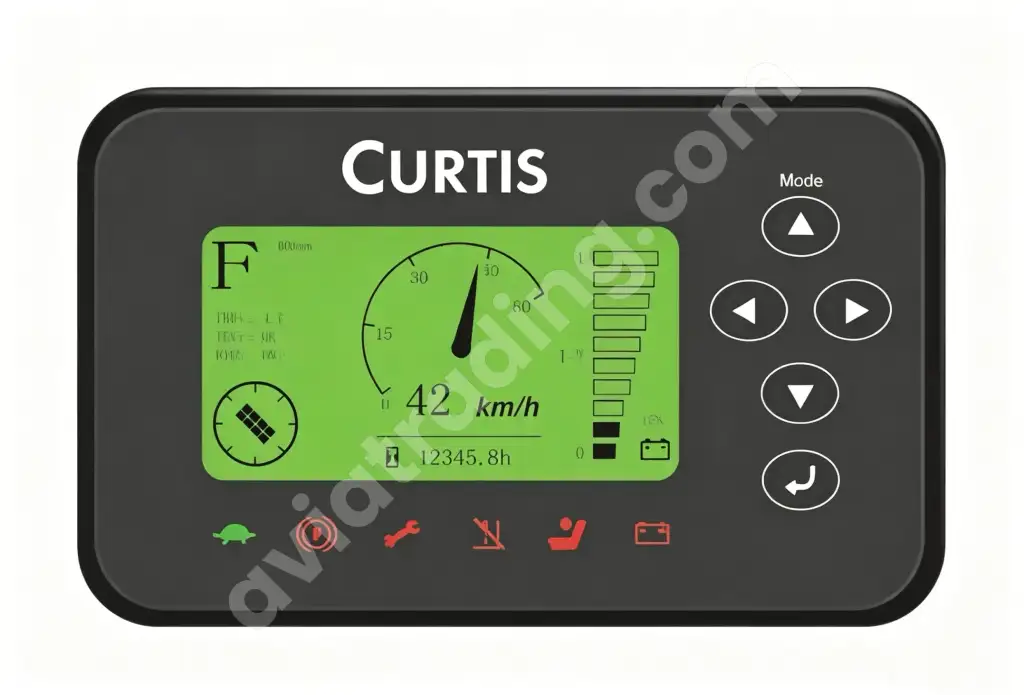

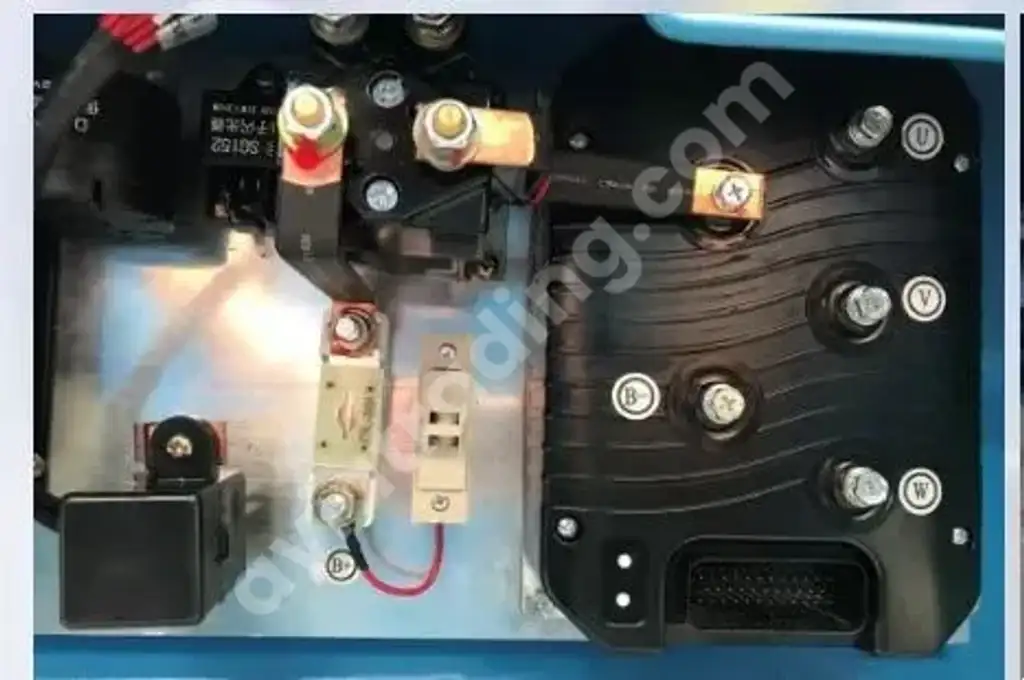

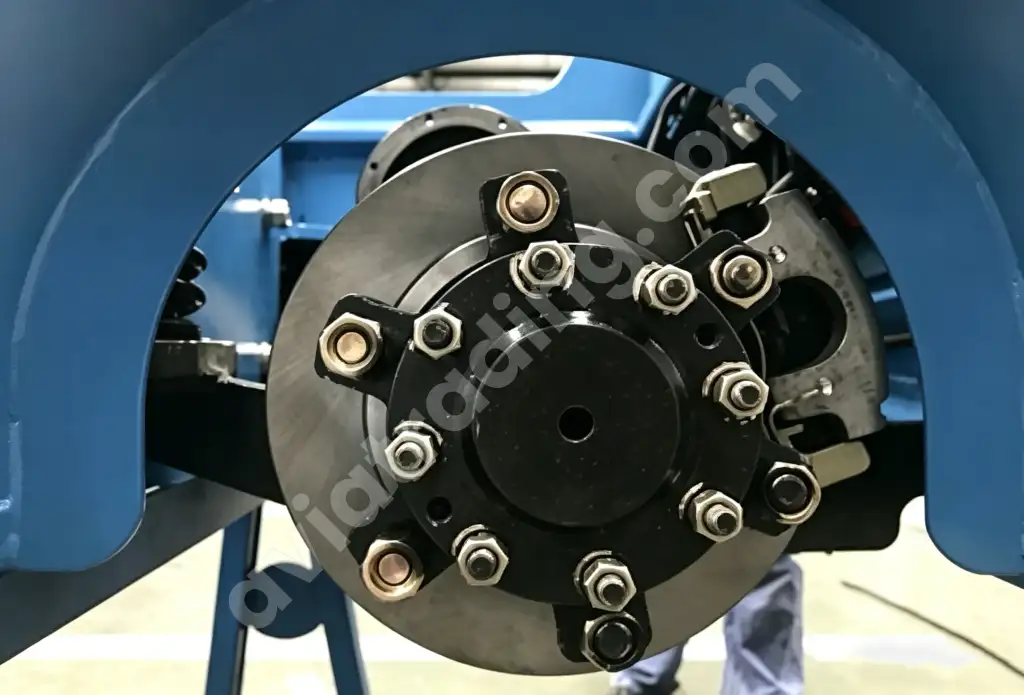

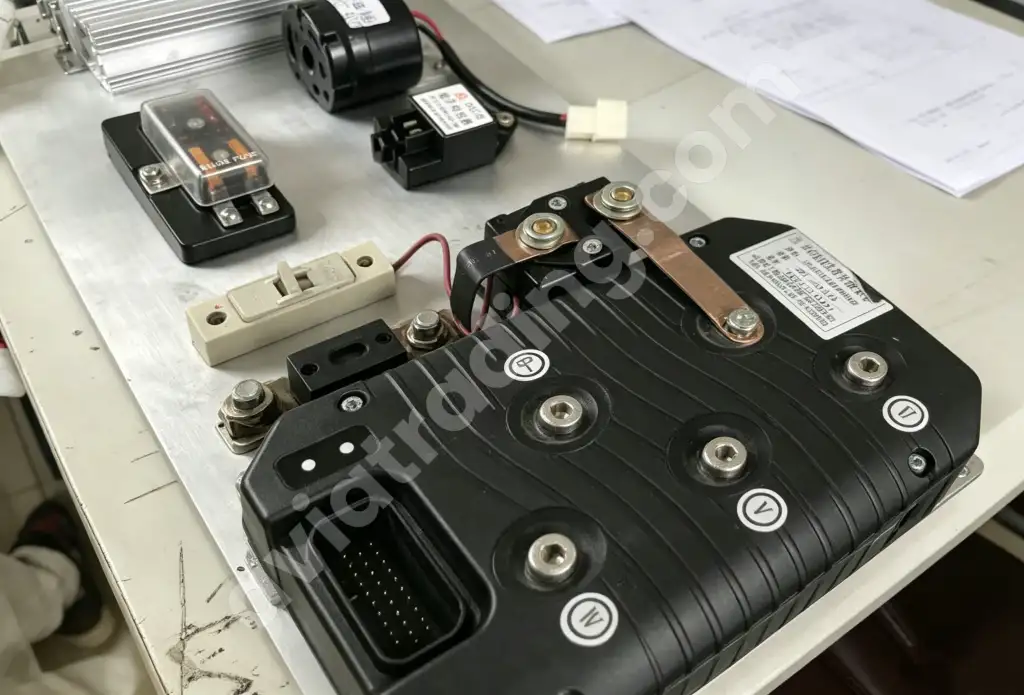

Model Code HFDQY060E Drive Type Electric traction vehicle Traction Motor AC variable frequency motor (KDS technology) Drive Controller Curtis AC inverter system (USA platform) Energy System 48V 325Ah traction battery (lead-acid / optional LiFePO4) Maximum Drawbar Pull 6 kN Rated Towing Load 6,000 kg Vehicle Structure Reinforced steel chassis architecture Overall Size 1870 (+150 rear coupling) × 995 × 1950 mm Operating Mass ≥1100 kg Turning Capability ≤1500 mm minimum radius Ground Clearance ≥150 mm clearance height Slope Performance ≥25% gradient capability (no load) Endurance Range Approx. 50 km per charge cycle Dashboard System Industrial digital instrument cluster Front Axle Design Mechanical steering solid tire system Rear Axle Configuration Motor-driven axle with hydraulic braking

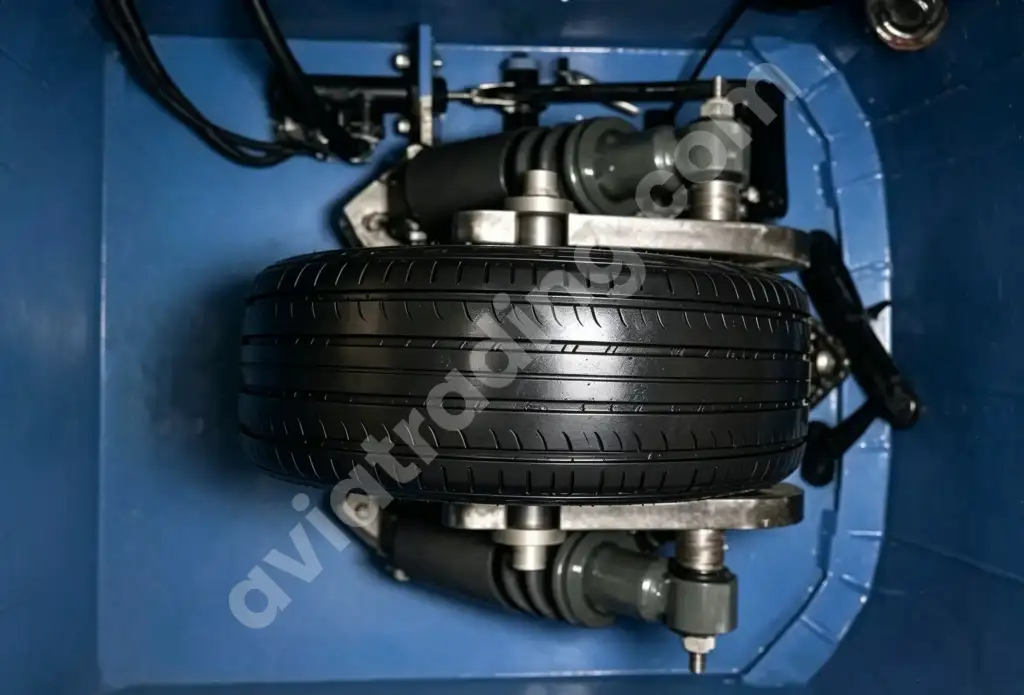

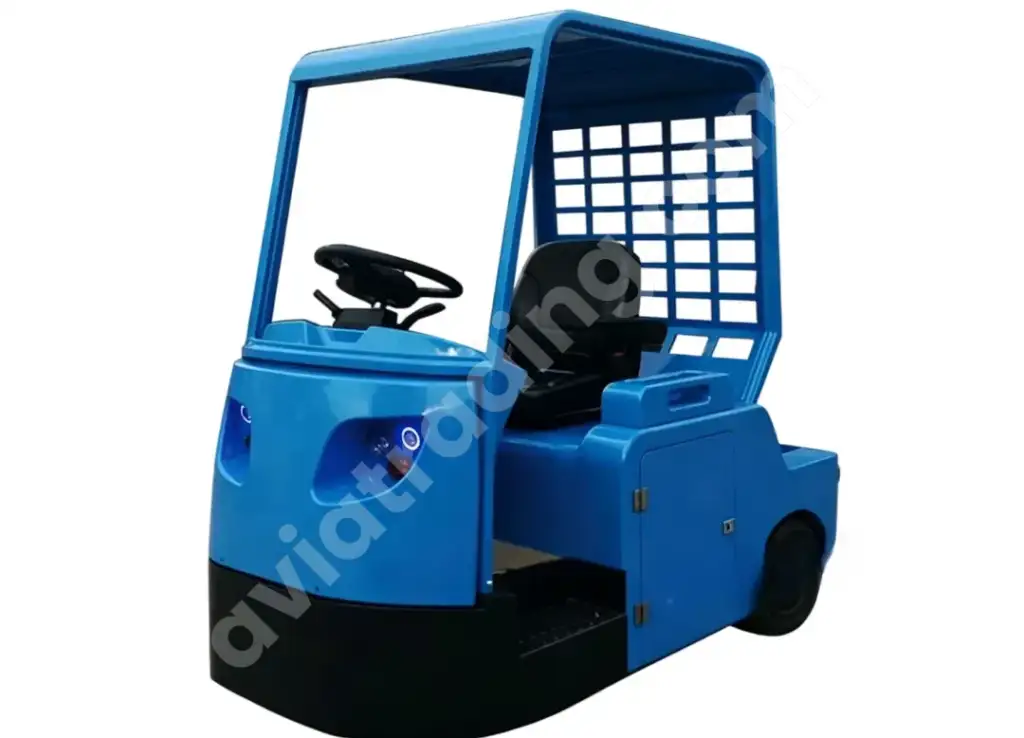

The HFDQY060E electric tow tractor is a professional airport ground support equipment (GSE) vehicle, designed for baggage handling, cargo towing, and aircraft apron logistics operations. This model integrates Curtis AC frequency conversion technology (USA control system) with a high-efficiency AC traction motor, delivering stable torque output and precise speed control under different load conditions. It supports multiple energy configurations including lead-acid traction battery systems and lithium iron phosphate energy packs, making it suitable for airports, logistics hubs, and industrial transport environments requiring reliable zero-emission operation. Core Engineering Advantages ✈️ Aircraft apron logistics towing capability ⚡ High-efficiency AC traction drive architecture 🔋 Modular energy storage configuration (Li-ion / Lead-acid compatible) 🧠 Intelligent frequency conversion speed regulation 🛞 Compact three-wheel chassis geometry for tight turning environments 🧭 Front axle st
